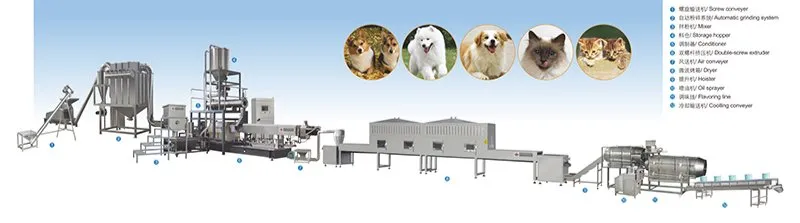

Theory of Pet Food Production Line: The pet food production line is a comprehensive industrial equipment system specifically designed for producing various types of pet food, covering the entire process from raw material processing to finished product packaging. Its core function is to ensure the nutritional balance, stable taste, and hygiene safety of pet food through automated and standardized production processes.
Key Applications: Extensive coverage for cat food, dog food, bird food, and fish food. Systems include dry grain production lines (twin-screw extruders), wet grain lines (high-temperature sterilization), and snack production lines (molding processes for dried meat, cheese sticks, etc.).
1. Raw Material Processing: Crushers and screening machines for uniform particles.
2. Mixing System: Dual axis paddle or horizontal screw mixers for precise formula ratios.

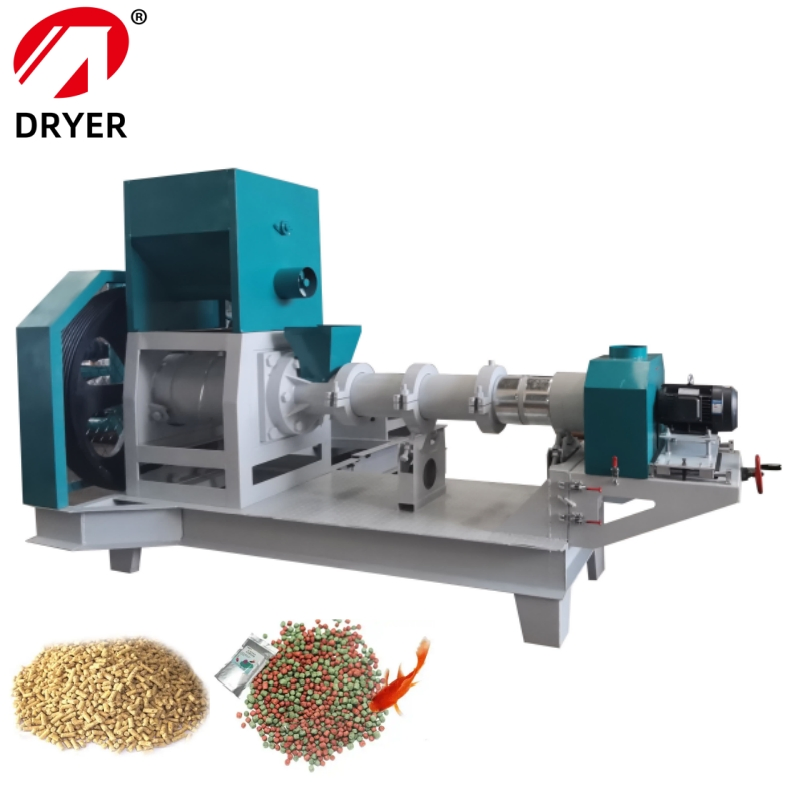

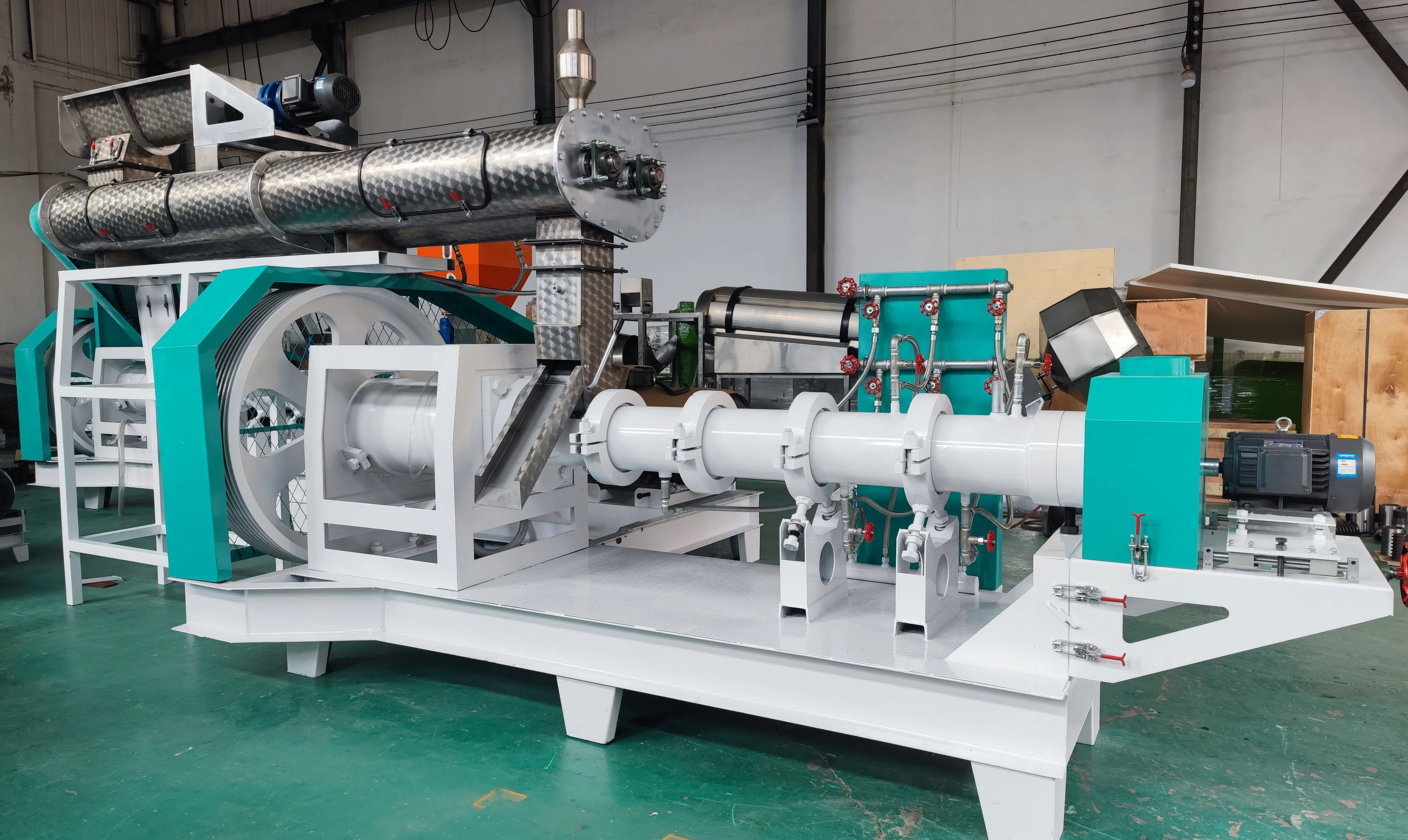

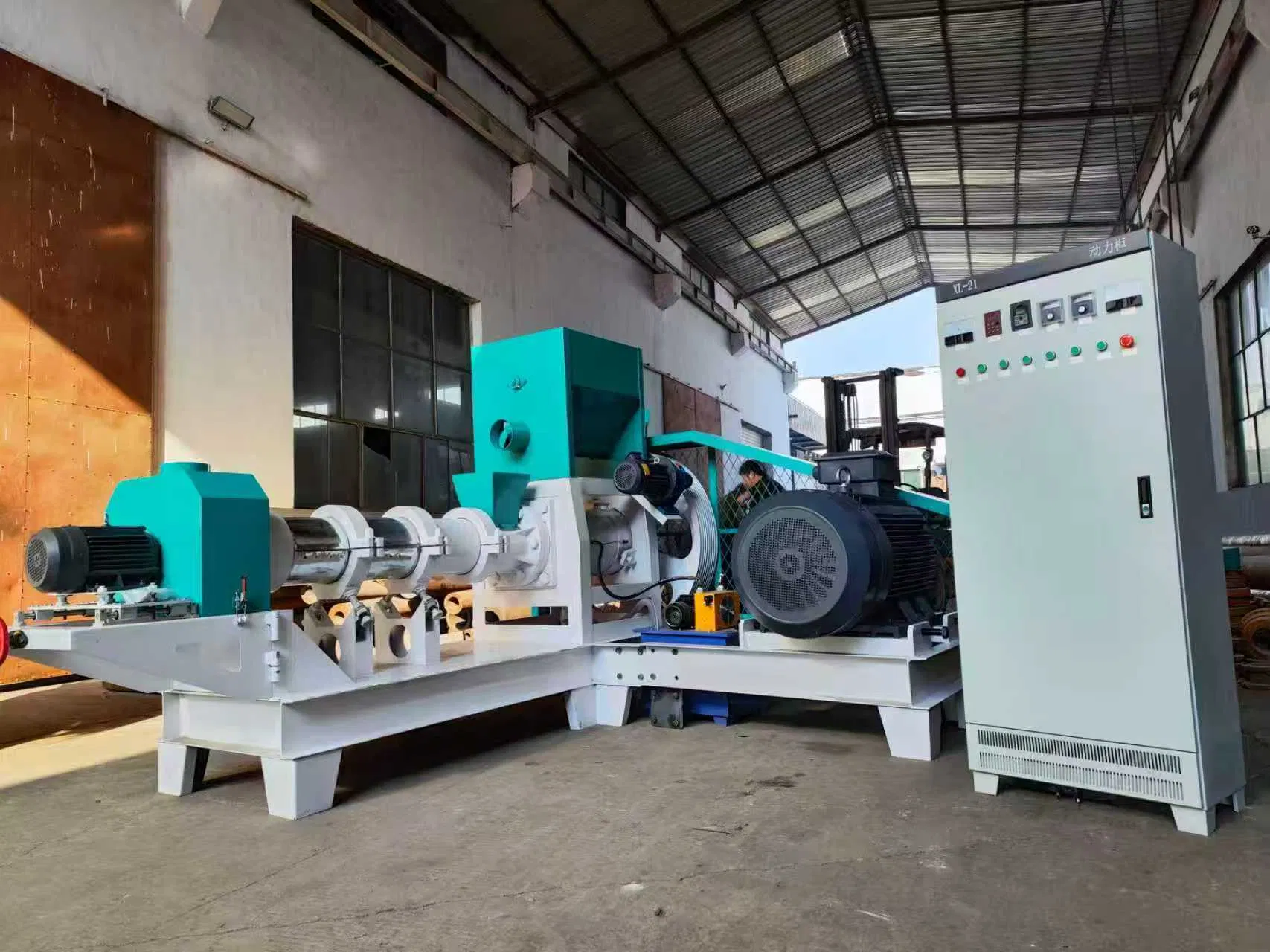

3. Forming System: Extruders and injection molding for specific shapes like granules and meat strips.
4. Drying/Baking: Core process using hot air circulation, vacuum low-temperature, or high-efficiency microwave drying.
5. Cooling & Packaging: Automatic weighing, sealing, and contamination detection (X-ray/Metal detectors).
| Model | Power (kw) | Dehydration (kg/h) | Sterilization (kg/h) | Size (mm) |
|---|---|---|---|---|
| JN-12KW | 12 | 12 | 120-150 | 6700*760*1750 |
| JN-20KW | 20 | 20 | 190-240 | 9000*760*1750 |
| JN-30KW | 30 | 30 | 300-380 | 11000*760*1750 |
| JN-50KW | 50 | 50 | 500-630 | 10050*1150*1750 |
| JN-100KW | 100 | 100 | 1000-1250 | 19350*1350*1750 |
| JN-200KW | 200 | 200 | 2000-2500 | 34300*1350*1750 |

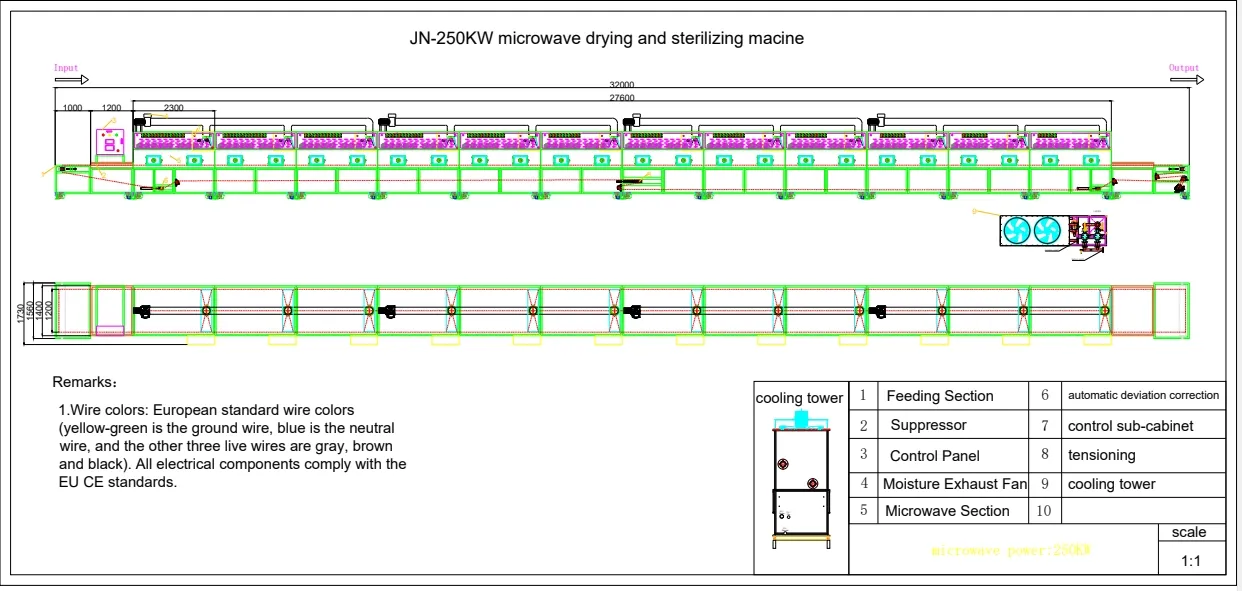

* Note: Machine sizes can be adjusted according to factory requirements. Detailed CAD drawings are available upon inquiry.

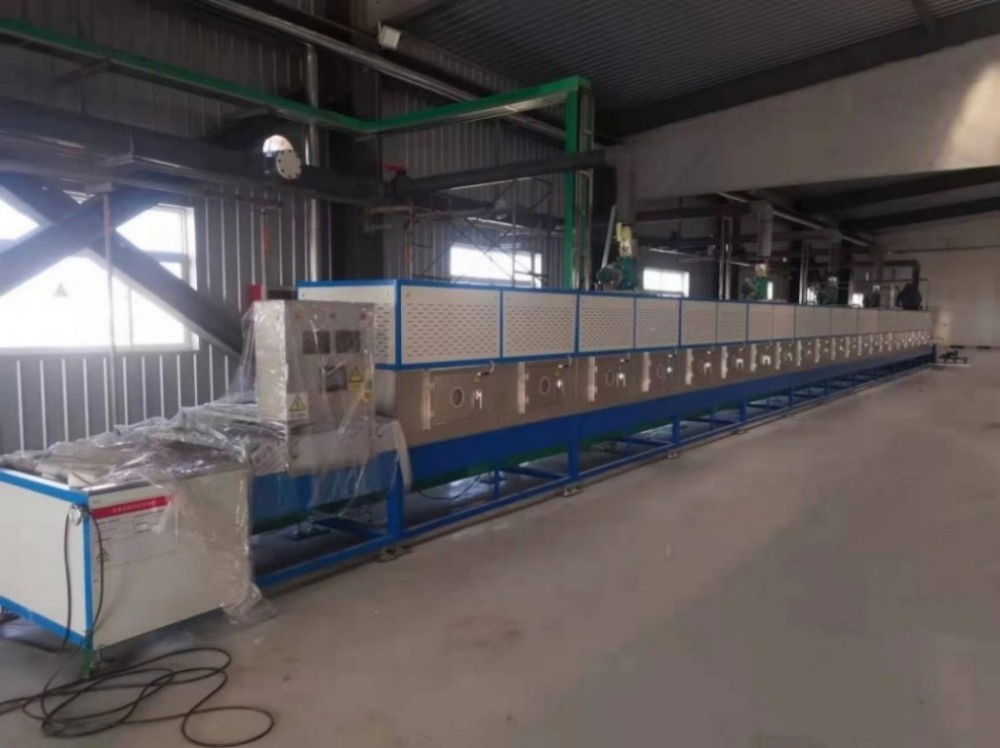

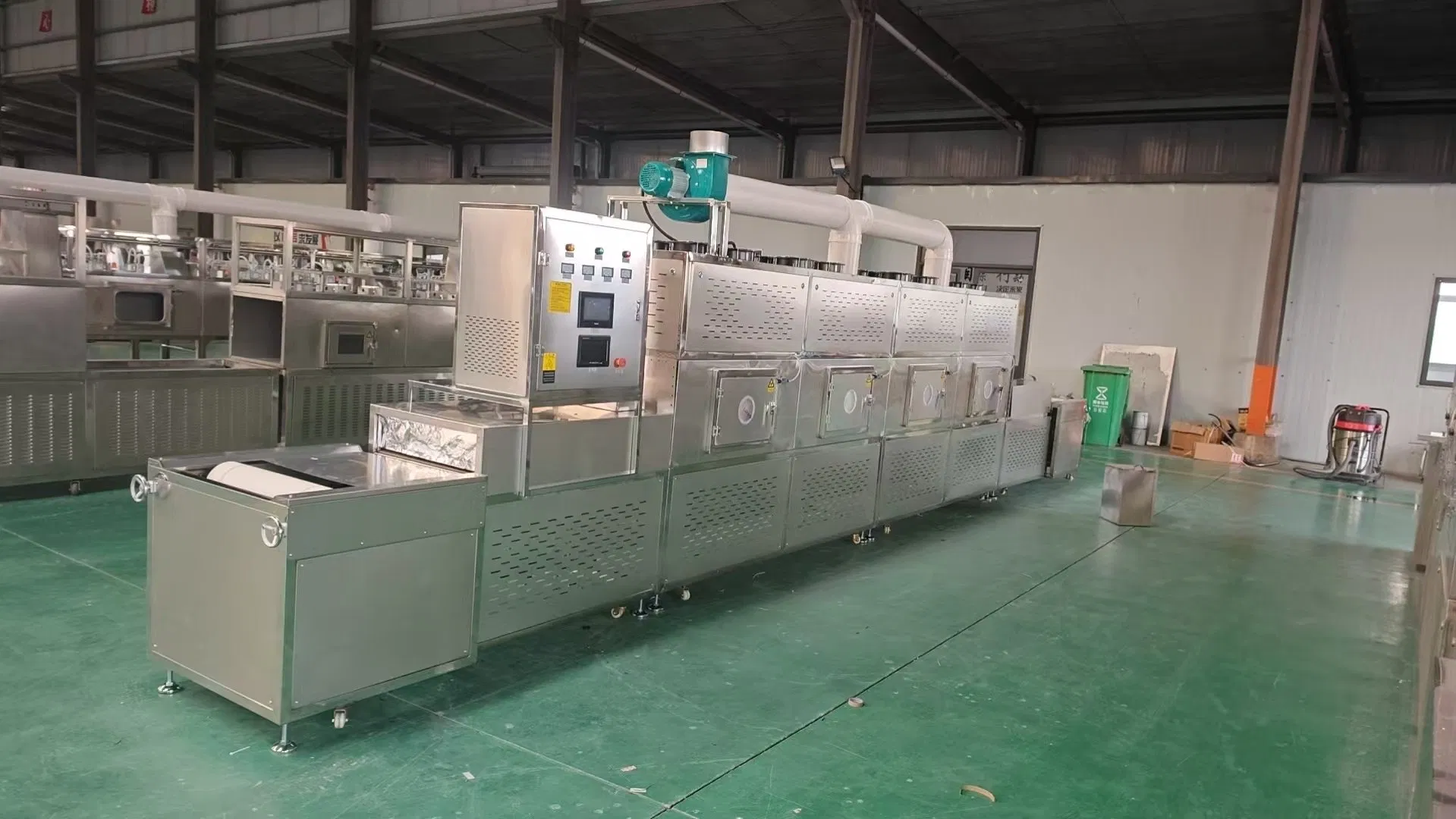

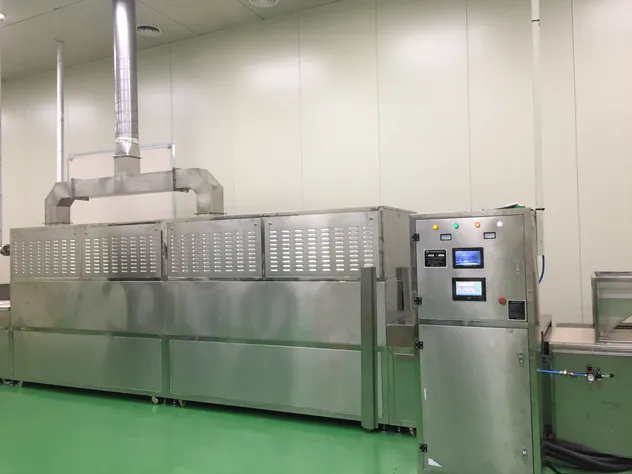

Tunnel Type Microwave

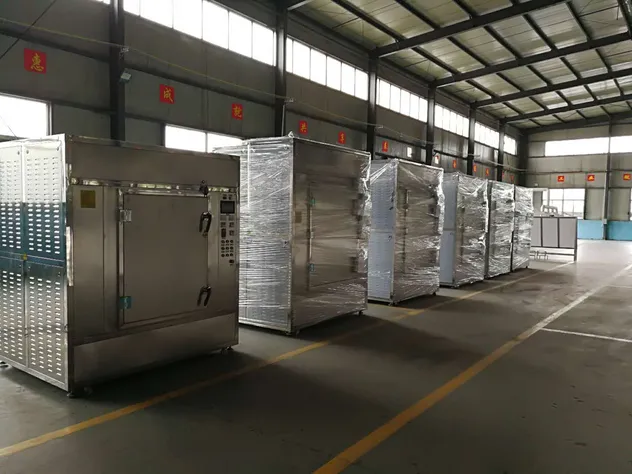

Box Type Microwave

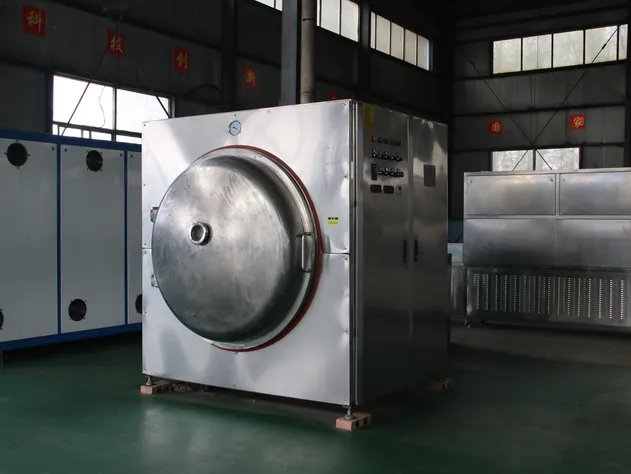

Vacuum Microwave
We are an enterprise engaged in professional development, production, and sales of microwave energy application equipment. Our product range includes microwave drying sterilization, thawing, vacuum drying, hot-air drying, and freeze-drying series, widely used in food, medicine, chemical raw materials, and ceramics across more than 30 countries.
Pre-sale: Professional design tailored to each customer's specific needs.
After-sale: 24-hour technical support. 12-month warranty for the entire equipment. Lifetime technical support and cost-price replacement parts after the warranty period.
