Carrot Soybean Meal Crushing and Grinding Chemicals

Customization:	Available
Processing Material:	Special Agricultural Products
Application:	Pet Food, Dairy, Grain Mill

Send Inquiry

Product Description

⚙️ Basic Specifications

Customized

Non-Customized

Certification

Power Source

Electric

Automatic Grade

Automatic

Function

Processing Grain Mill

Transport Package

Wooded Case

Specification

13CBM

Origin

China

Production Capacity

0.5t-10t Per Hour

📝 Product Description

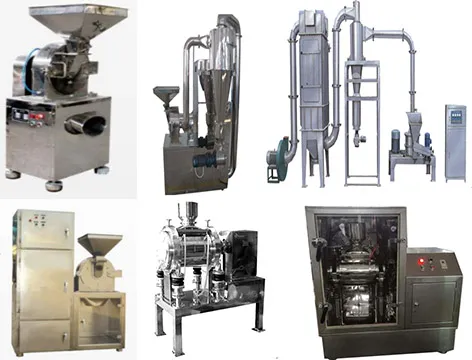

Brief introduction of corn grinder/mill

The corn grinder is constructed from 304 stainless steel and meets "GMP" standards. It is primarily utilized in the food, chemical, and medicinal industries for high-efficiency grinding.

💡 Working Principle

The machine operates at relatively high speeds using an active chainring between fixed gear plates. Material is crushed through impact, friction, and collision. The crushed material can be discharged directly from the grinding chamber through the discharge port. By switching screens with different numbers of perforations, the thickness and fineness of the powder can be easily adjusted without waste or pollution.

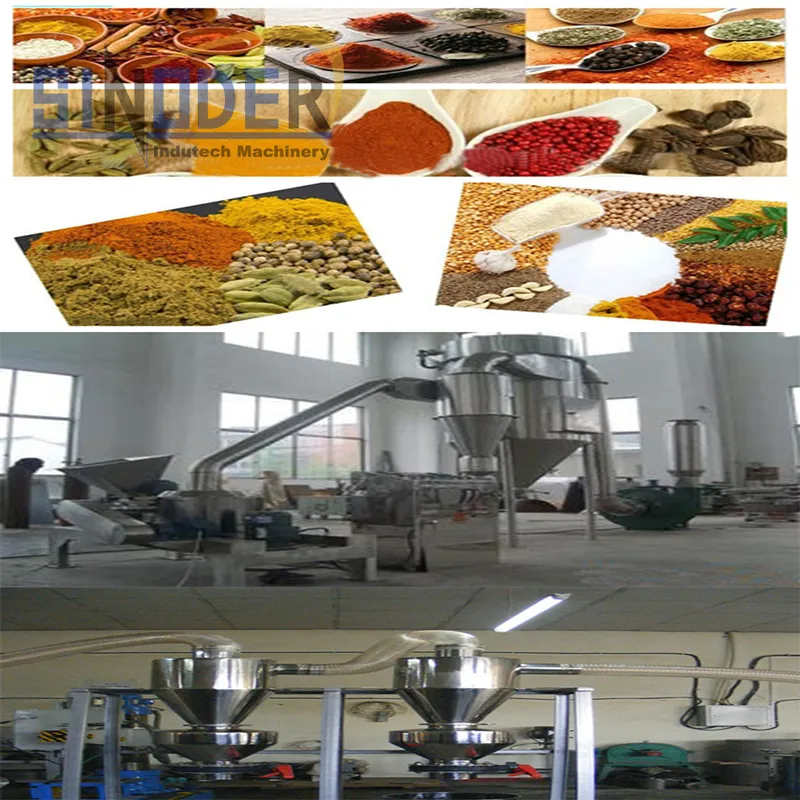

🔍 Versatile Applications

Designed for grinding a wide variety of raw materials:

Grains: Corn, rice, wheat, soy.
Spices: Ginger, chili, pepper, anise, cinnamon.
Vegetables: Dehydrated vegetables, onion, garlic, carrot, spinach.
Chemicals: Dyes, pigments, paints, pesticides, carbon black.
Pharmaceuticals: Herbs, ginseng, American ginseng, yam.
Others: Fish meal, flavors, chitin, calcium carbonate.

📊 Main Technical Parameters (Standard)

Model	20B	30B	40B	60B
Capacity (kg/h)	20-100	30-200	40-500	60-800
Spindle speed (r/min)	4500	3800	3400	2800
Feed size (mm)	<6	<6	<10	<10
Grinding fineness	20-120 mesh	20-120 mesh	20-120 mesh	20-120 mesh
Power (kw)	4	5.5	11	18.5
Weight (kg)	200	300	550	880
Dimension (mm)	650×550×1250	750×600×1450	900×750×1650	1000×950×1800

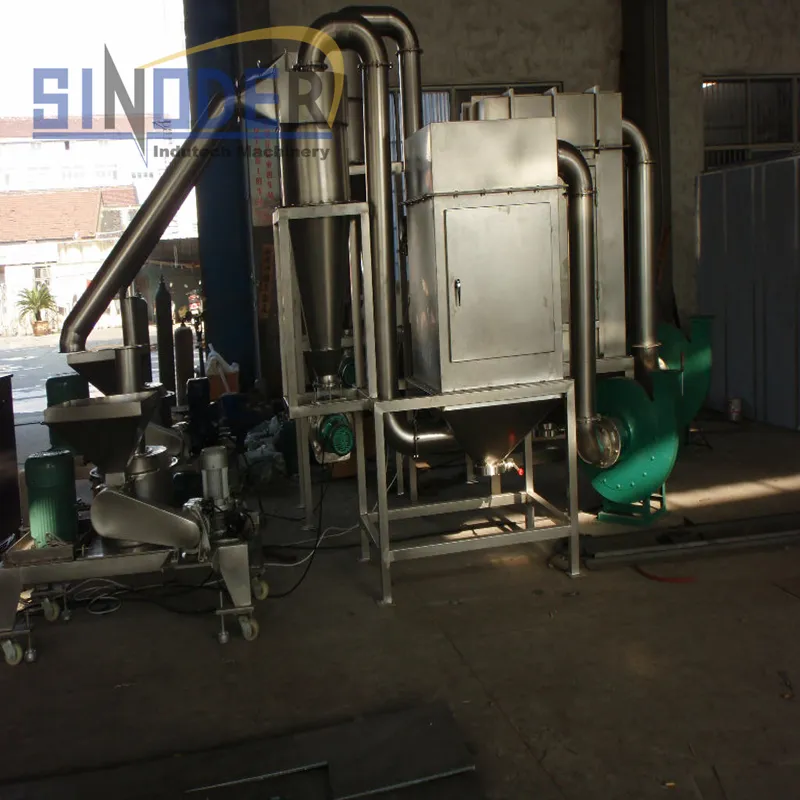

🌪️ Pulse Dust Collector System

This integration of grinding, dust collection, and continuous discharging is ideal for weak current type materials and high-temperature resistant materials. It ensures a dust-free production environment.

Model	Capacity (kg/h)	Feed (mm)	Discharge (mesh)	Power (kw)	Speed (r/min)	Dimension (mm)
15	10-100	<10	80-320	13.75	5800	420012502700
20	50-200	<10	80-320	22.15	4200	470012502900
30	50-300	<10	80-320	46	3800	664013003960
60	100-1200	<12	80-320	84.15	3200	750023004530
80	100-1600	<12	80-320	100.4	2800	820025004600

⭐ Key Advantages

Integrated Grading: Internal classification mechanism completes crushing and grading at once to reduce energy loss.
Heat Control: Equipped with an induced draft fan to continuously discharge heat, making it suitable for heat-sensitive materials.
High Precision: Product granularity can reach a fineness up to 10-5um with narrow particle size distribution.
Easy Maintenance: The fuselage adopts a "hafu" structure with a gas spring opening for unobstructed cleaning.
Durable Build: Main pulverizing parts are made of high-grade alloy tool steel for extended service life.
Stable Operation: Imported high-speed precision bearings and dynamically balanced rotors ensure low noise and vibration.

📦 Packaging & Shipping

Waterproof packing according to international export standards (20ft, 40ft, 40hp containers).
Equipment fittings, motors, and power cabinets are secured in Wooden Cases or Iron Boxes.
Main equipment body is protected by Color-Stripes Plastic Cloth.
