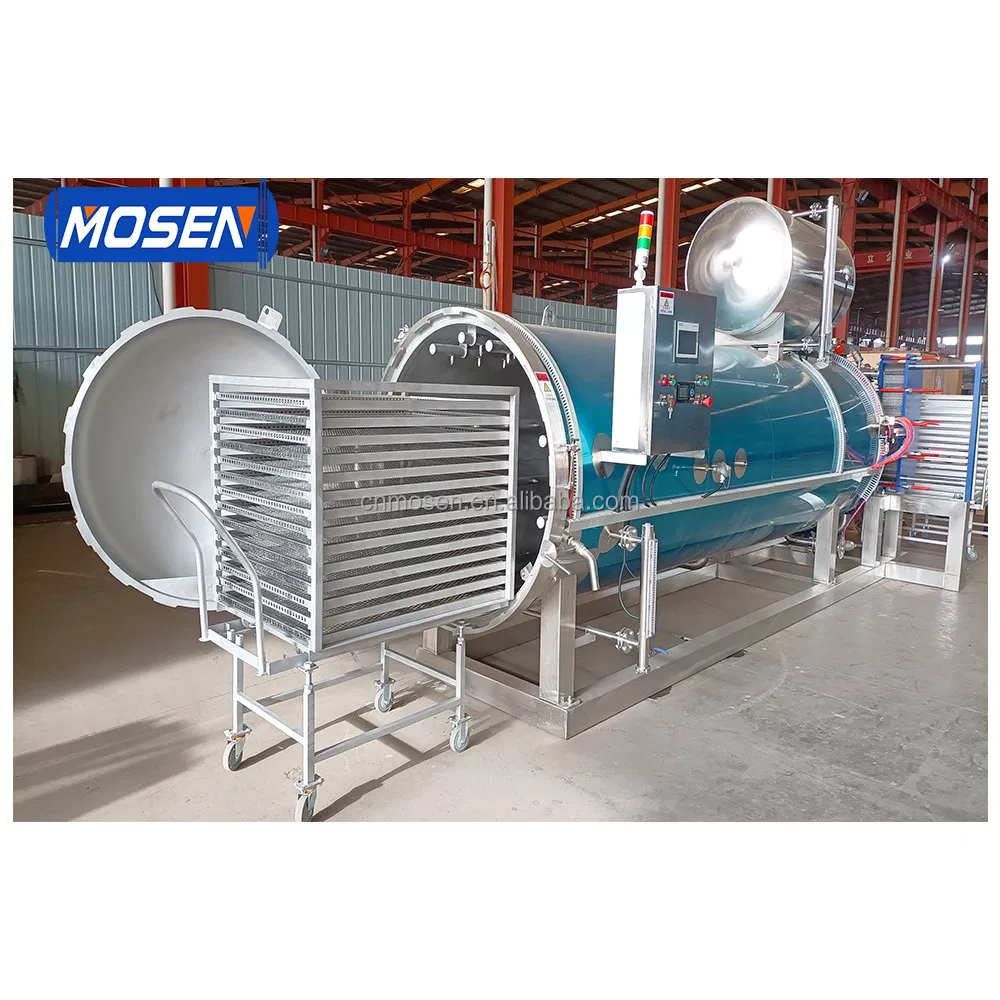

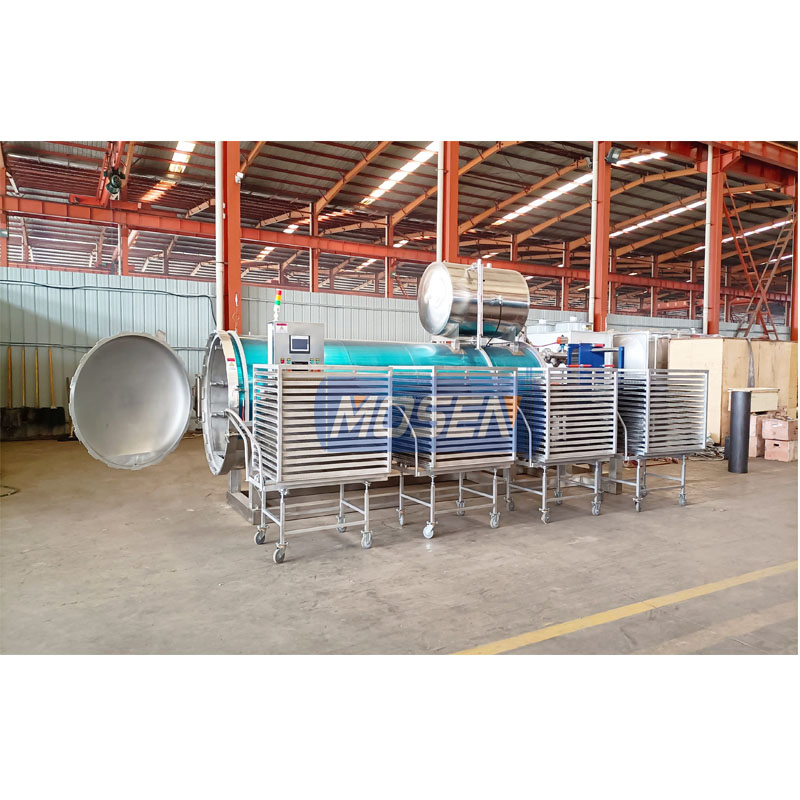

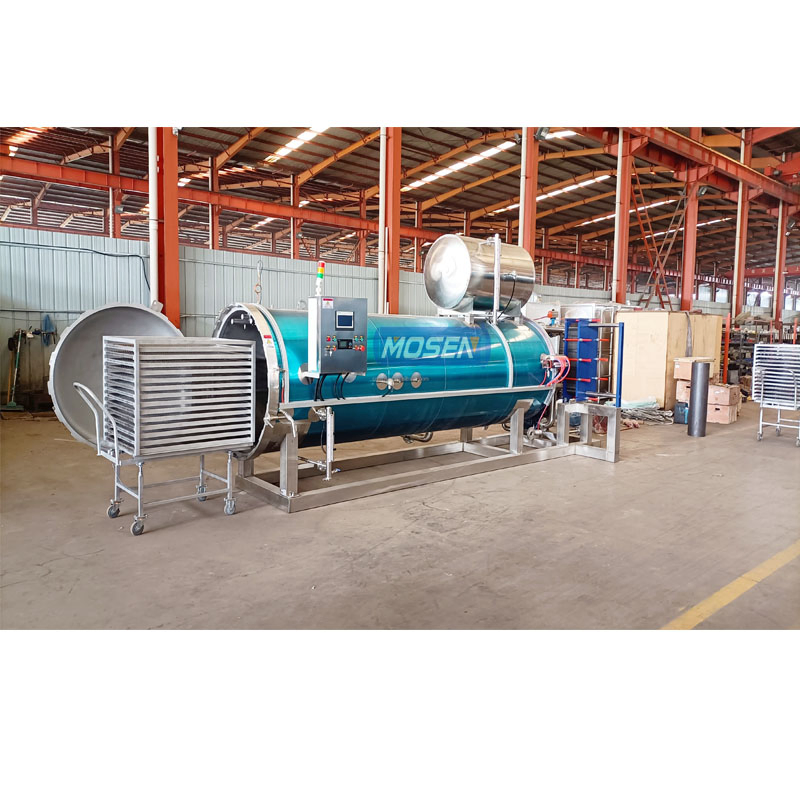

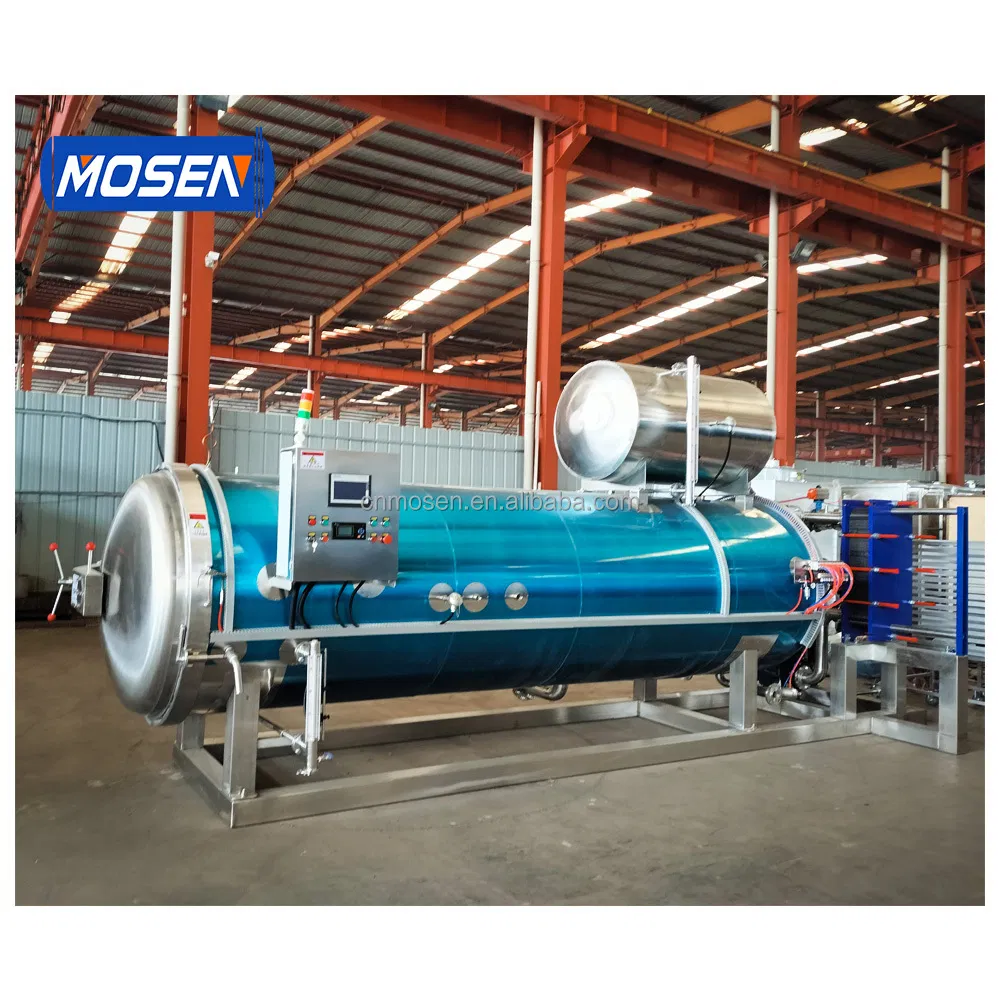

Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
1 / 5
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food
Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food

Industrial Automatic Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food

Customization: Available
After-sales Service: Video Technical/Online Support
Warranty: 5 Years
Send Inquiry

Product Description

Overview & Basic Info
Customized:Customized
Certification:CE, FDA, EEC, ISO13485
Scale:Medium
Automation:Automatic
Operation:Continuous
Temperature:Commercial 121 Degrees Retort
Heating Way:Steam/Water Retort Machine
Delivery:30-35 Working Days
Efficiency:High Efficiency Retort Machine
Origin:China
Product Description
Industrial Steam Pressure Water Spray Retort

Industrial Steam Pressure Water Spray Retort for Glass Bottle Ready Meals Pouch Pet Food

Specializing in food autoclave sterilizer retorts with more than 8 years of experience. Solutions can be customized according to specific designs.

Equipment View 1
Equipment View 2
⚙️
Standardized Sterilization Effect: Regulates temperature and pressure according to different food processing technology. Heat distribution is uniform and pressure is stable. Deformation and breakage rates are minimized.
🛡️
High Safety Performance: Equipped with triple safety interlock and pot door flange design pressure relief structure to prevent accidents. Full fault alarm functions allow real-time monitoring.
Feature Banner

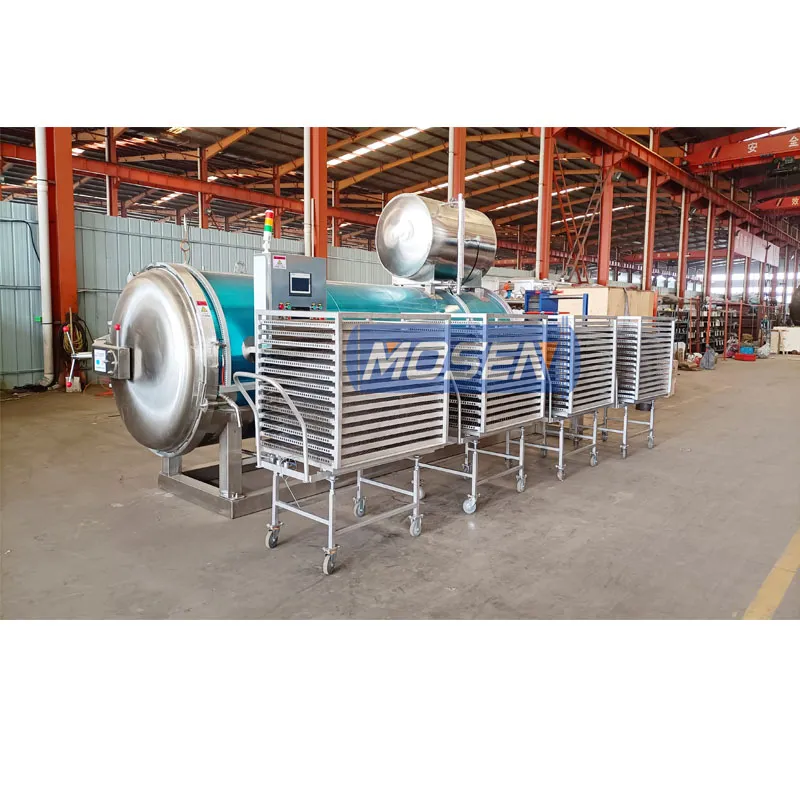

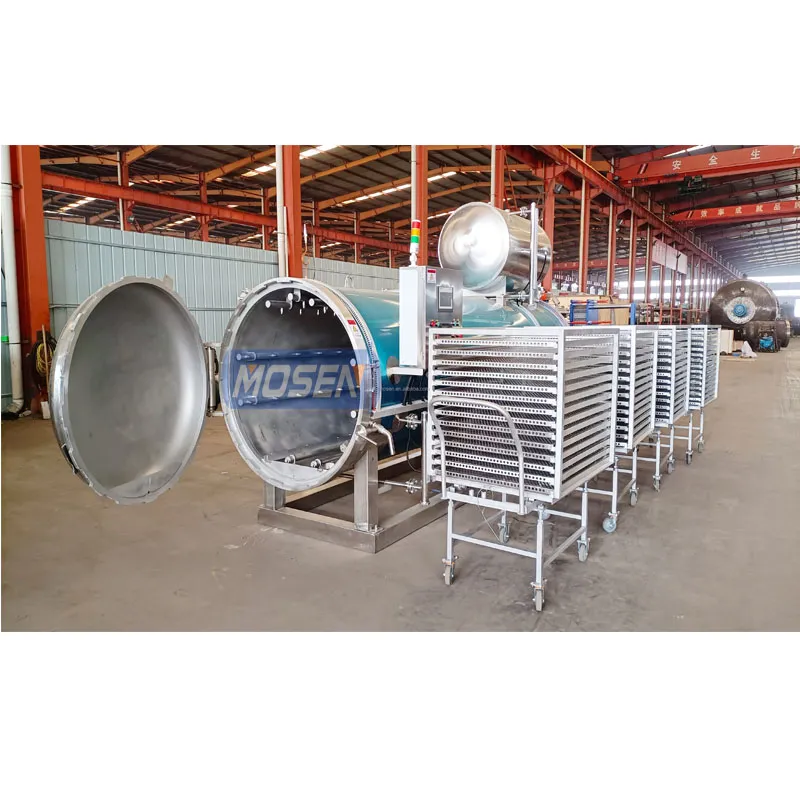

Detail 1
Detail 2
Product Parameters
Parameters Header
MODEL Inner Diameter Length Capacity Thickness MAX. TEMP MAX. PRE VOLTAGE
DN1010.B1000MM1000MM1.05m³4MM145ºC0.35MPA380V
DN1020.B1000MM2000MM1.8m³4MM145ºC0.35MPA380V
DN1220.B1200MM2000MM2.65m³5MM145ºC0.35MPA380V
DN1230.B1200MM3000MM3.74m³5MM145ºC0.35MPA380V
DN1240.B1200MM4000MM4.06m³5MM145ºC0.35MPA380V
DN1340.B1300MM4000MM5.62m³5MM145ºC0.35MPA380V
Production Application

Water Spray Retort is suitable for all kinds of high temperature resistant packaging materials:

  • Plastic Container: PP bottles, HDPE bottles
  • Metal Containers: Tin cans, Aluminum cans
  • Soft Bag Packaging: Aluminum foil bag, transparent bag, vacuum bag, etc.

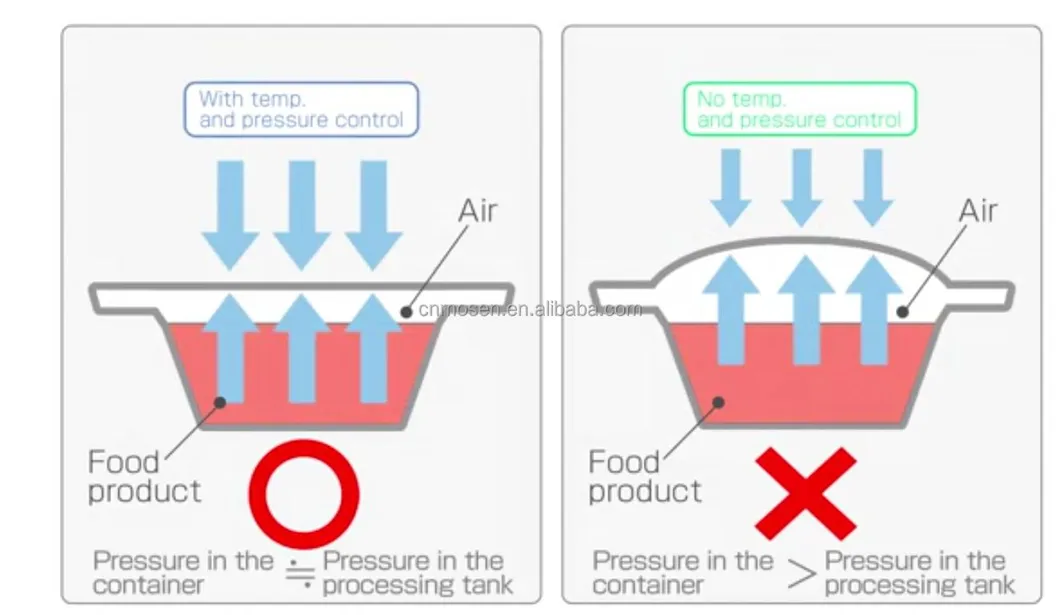

Application 1
Application 2

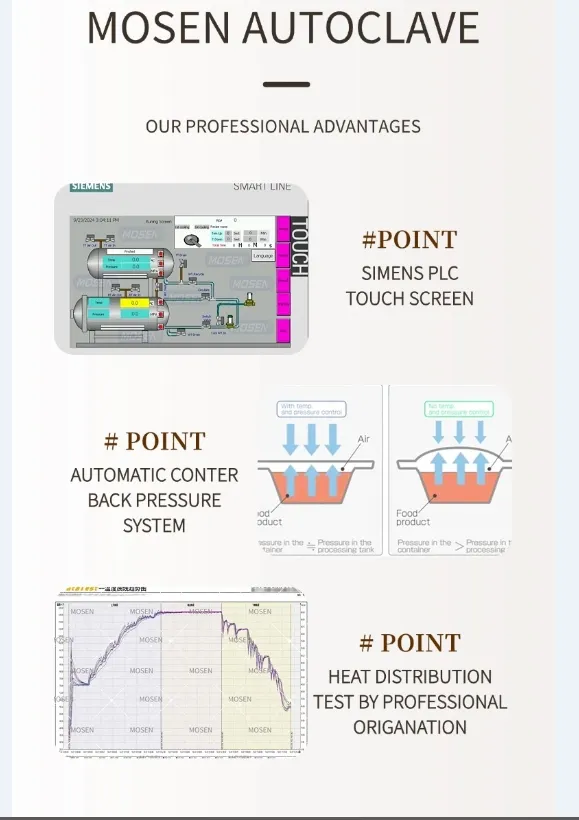

Packaging Types

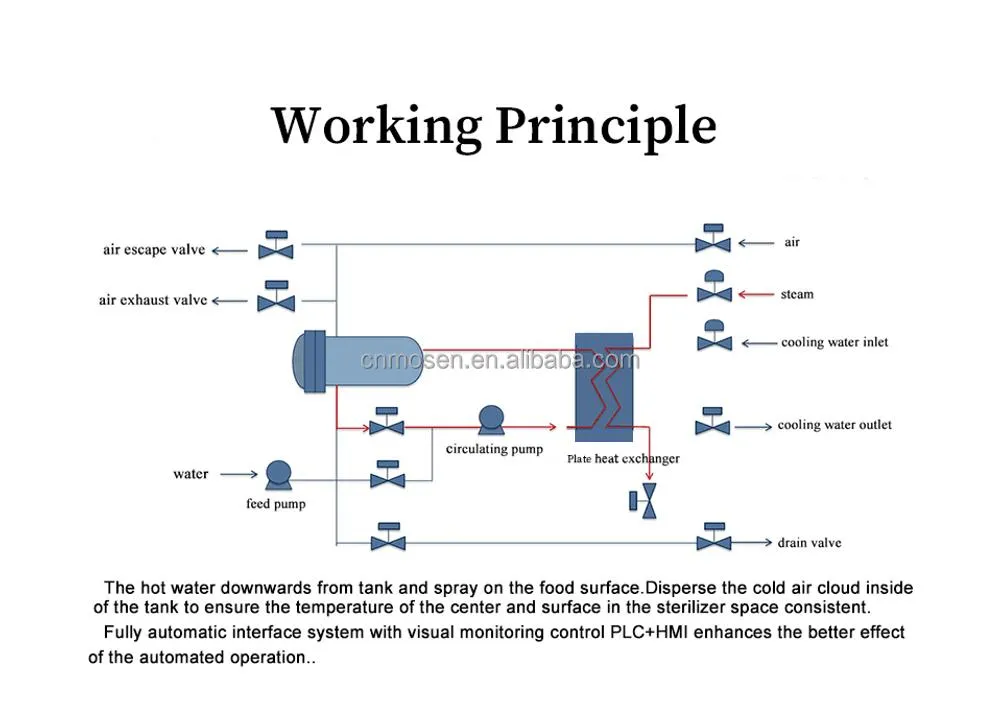

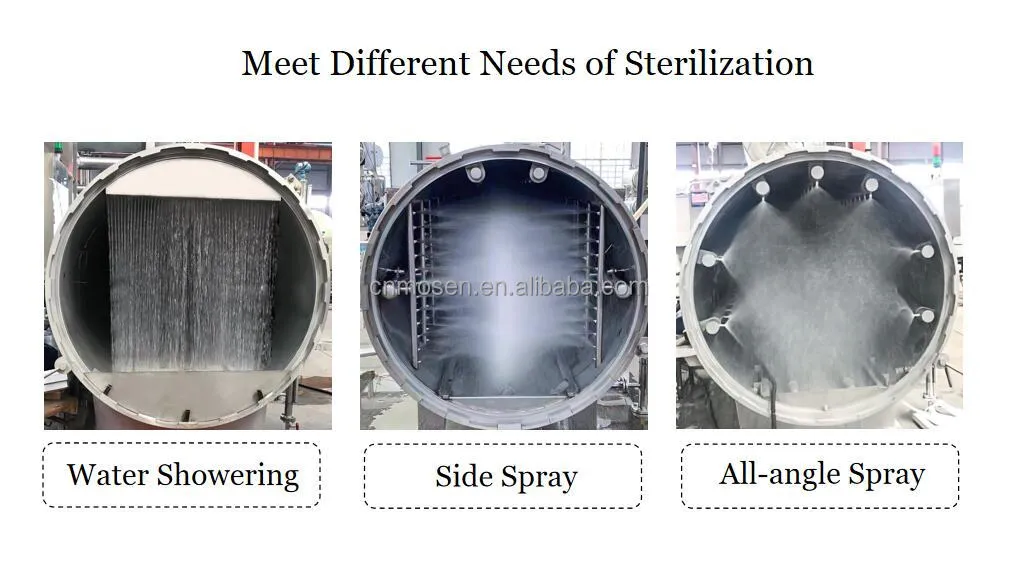

Working Principle

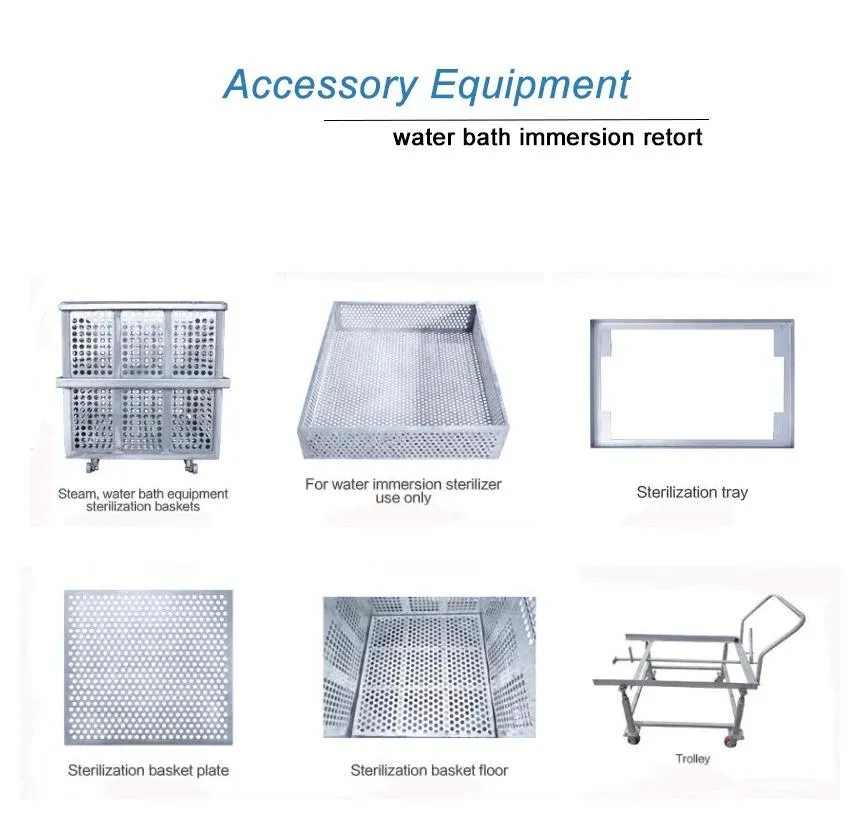

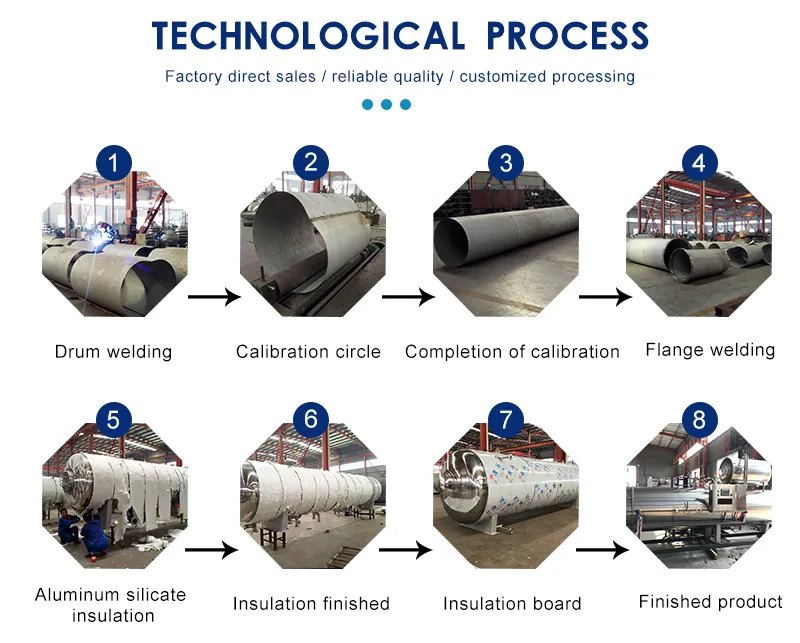

Principle 1 Principle 2 Principle 3 Principle 4
Why Choose Us
💎
National D1, D2 pressure vessel manufacturer integrating design, manufacturing, and R&D.
📜
Passed ISO, ASME, DOSG & CE qualification certifications with advanced automatic welding and testing equipment.
👥
A production and R&D team of more than 200 people ensuring every product meets national standards.

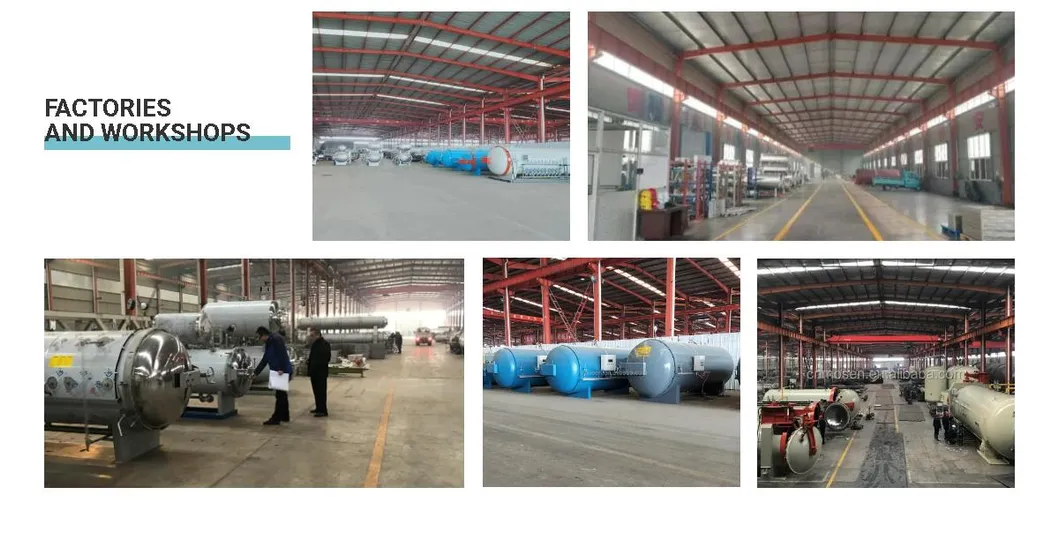

Factory 1
Factory 2

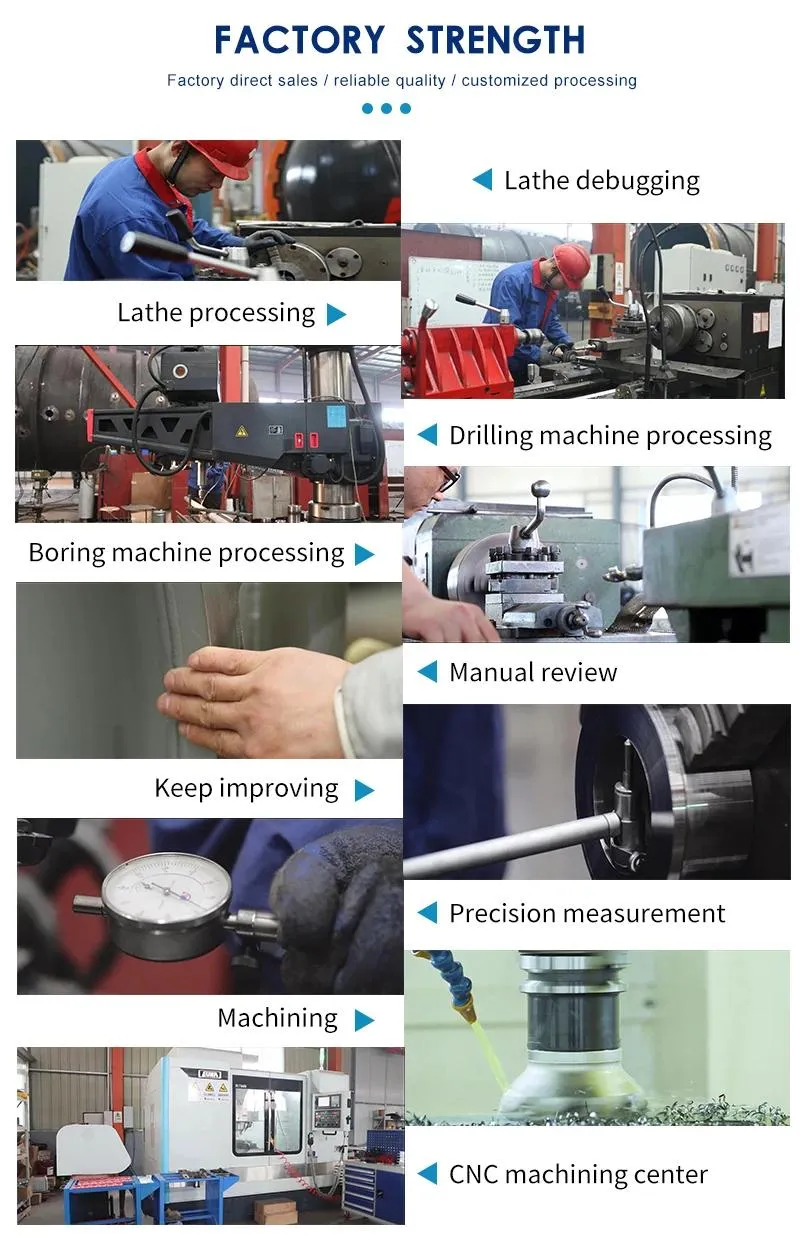

Certifications

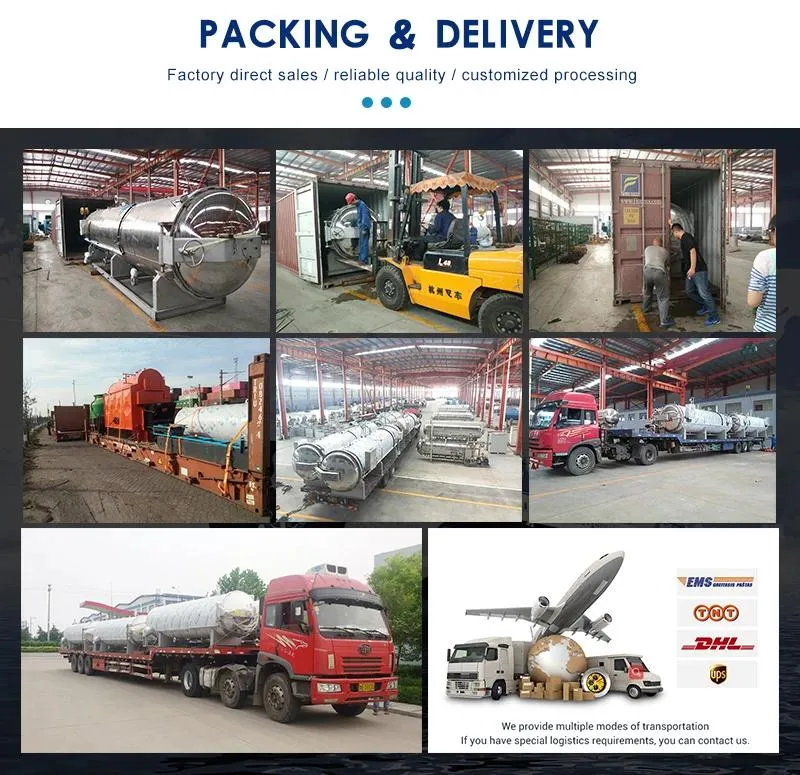

Packaging & Shipping

1. Delivery by LCL/20'FCL/40'FCL depending on order. Professional technicians perform trial runs for each product before delivery.

2. During loading, retorts are fixed tightly with wire rope to ensure stability in the container.

Shipping Details
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in food sterilization equipment.
How long is the warranty period?
We provide a comprehensive 5-year warranty for our machines.
What kind of packaging materials are compatible?
It is suitable for PE/PP bottles, tinplate/aluminum cans, aluminum foil bags, and vacuum pouches.
How is the equipment installed and serviced?
We offer both on-site engineering support for debugging and repair, as well as comprehensive online technical services.
What payment methods do you accept?
We accept various payment terms including T/T and Irrevocable L/C payable.
Is the sterilization effect consistent across batches?
Yes, the system regulates temperature and pressure precisely to ensure uniform heat distribution and consistent results for every batch.
