Small Chana Float Fish Pallet Cold Press Pellet Feed Manufacturing Pet Pelletizing Dry Kibble Dog Food Machine Price

1 / 5

Small Chana Float Fish Pallet Cold Press Pellet Feed Manufacturing Pet Pelletizing Dry Kibble Dog Food Machine Price

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

GD-PDFM02

Power Source

Electric

Process

Thermal Processing

Automatic Grade

Automatic

Application

Dog, Fish, Cat, Bird, Rabbit

Feed Type

Customizable

Spiral Diameter

Φ40-Φ160

Advantage

Easy Operation and High Efficiency

Type

Single Screw Extruder Machine

Core Selling Point

Long Service Life

Voltage

220V/380V

Production Capacity

40-2000kg/H

⚙️ Product Description

🚀

Introduction

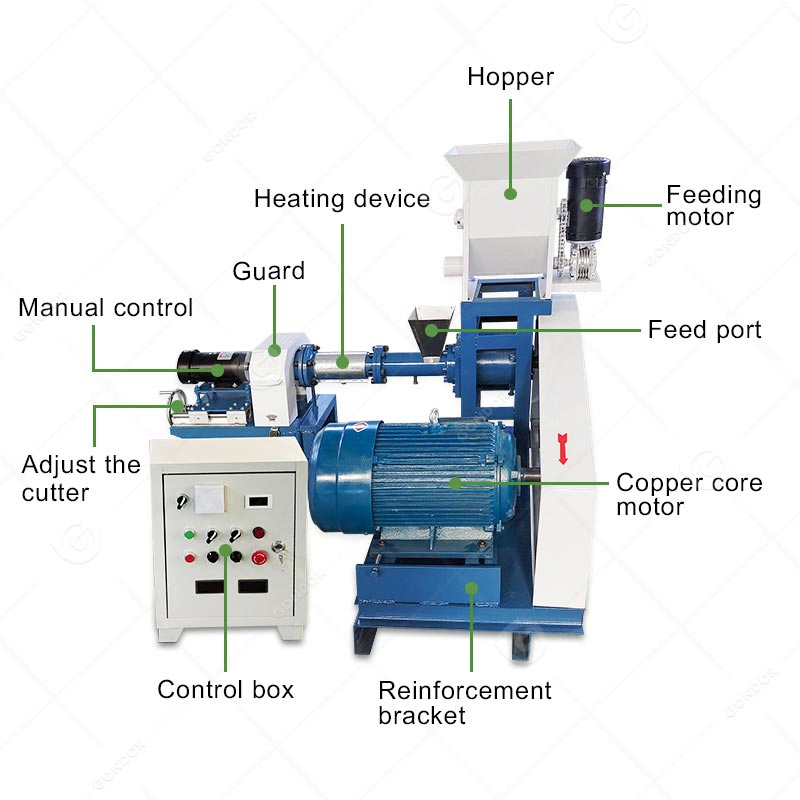

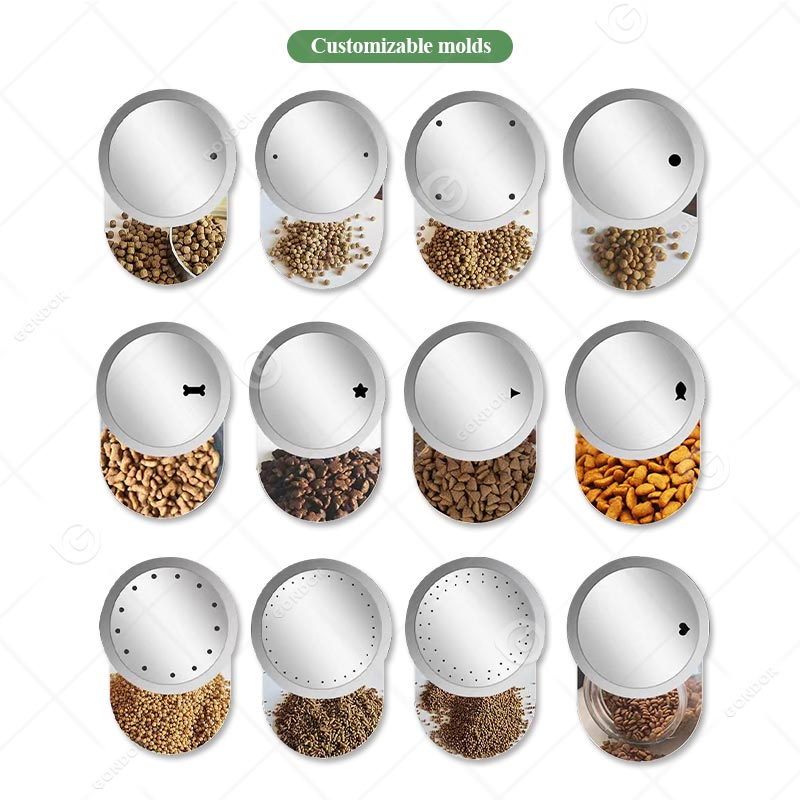

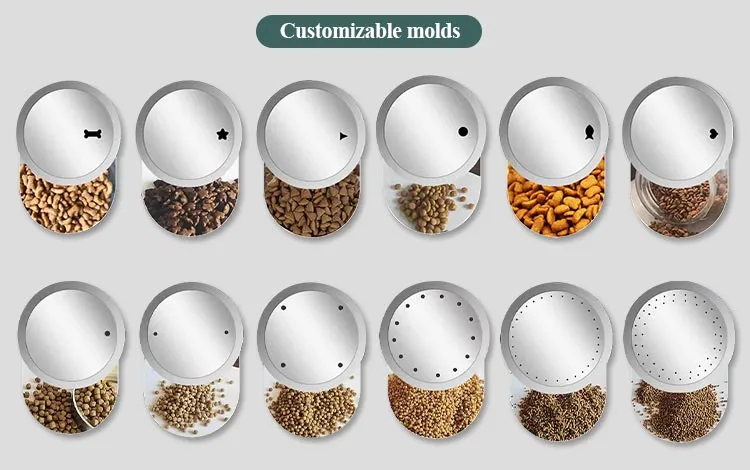

Feed extruder machine is specialized extrusion equipment designed for high-quality feed production. It produces a variety of shapes with customizable molds. Equipped with a variable frequency rotary cutting device, it allows precise control over cutting speed and length. Built with refined alloy materials and heat treatment, it ensures extreme wear resistance and an extended service life.

🌟 Key Features & Applications

Wide Application:

Uses corn, soybean, and animal scraps to produce flavored feed for dogs, cats, fish, birds, and more.
Ideal for small to medium-sized feed factories and farmers.
Produces floating feed (up to 12 hours) which reduces water pollution and fish diseases.

Main Features:

Controllable density for both pet and aquatic feed.
Dry puffing process utilizing self-heating, eliminating the need for steam systems.
Powerful self-cleaning function within the screw design.
Compact structure with exceptionally high production efficiency.

📊 Technical Parameters

Model	Productivity (kg/h)	Motor Power (kw)	Feeding Power (kw)	Screw Diameter	Cutting Power (kw)	Volume (cm)	Weight (kg)
PDFM-40	45~50kg	5.5(220V)	0.4	Φ40	0.4	13616085	350
PDFM-50	80~90kg	11(380V)	0.4	Φ50	0.4	13616085	350
PDFM-60	120~150kg	15	0.4	Φ60	0.4	13616785	450
PDFM-702	180~200kg	18.5	0.4	Φ70	0.4	13616785	490
PDFM-80	300~350kg	22	0.55	Φ80	0.55	13619584	600
PDFM-100	400~500kg	37	1.1	Φ90	1.5	180260115	800
PDFM-120	600~700kg	55	1.1	Φ120	2.2	220280120	950
PDFM-160	1000~1200kg	90	1.5	Φ160	2.2	230300120	1200
PDFM-200	1800~2000kg	110	2.2	Φ160	2.2	240320140	1450

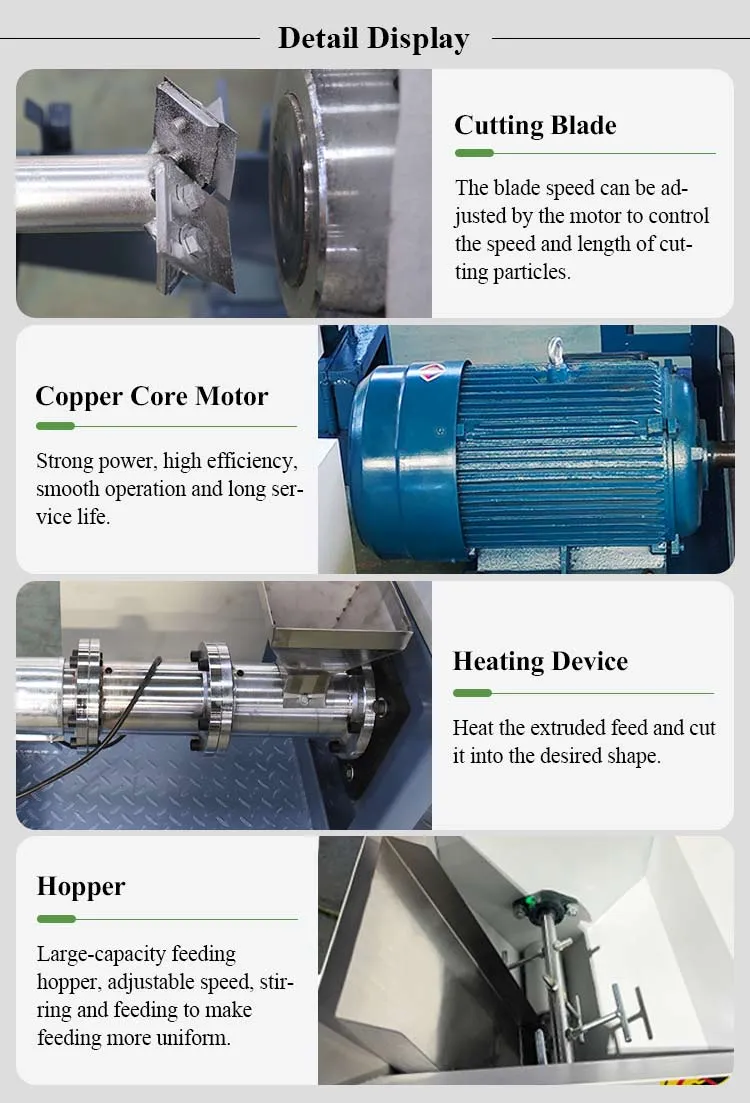

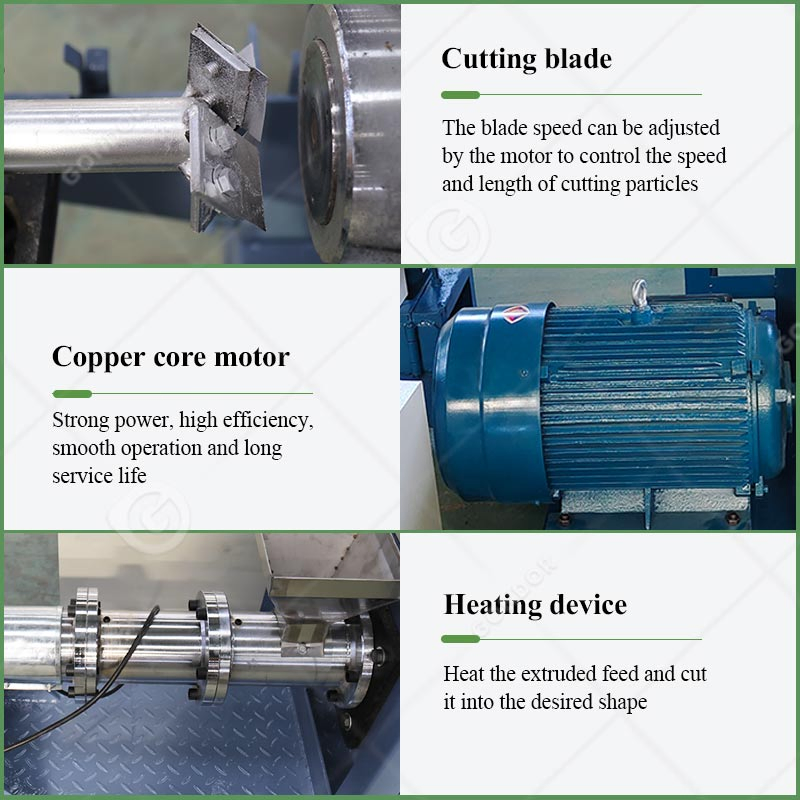

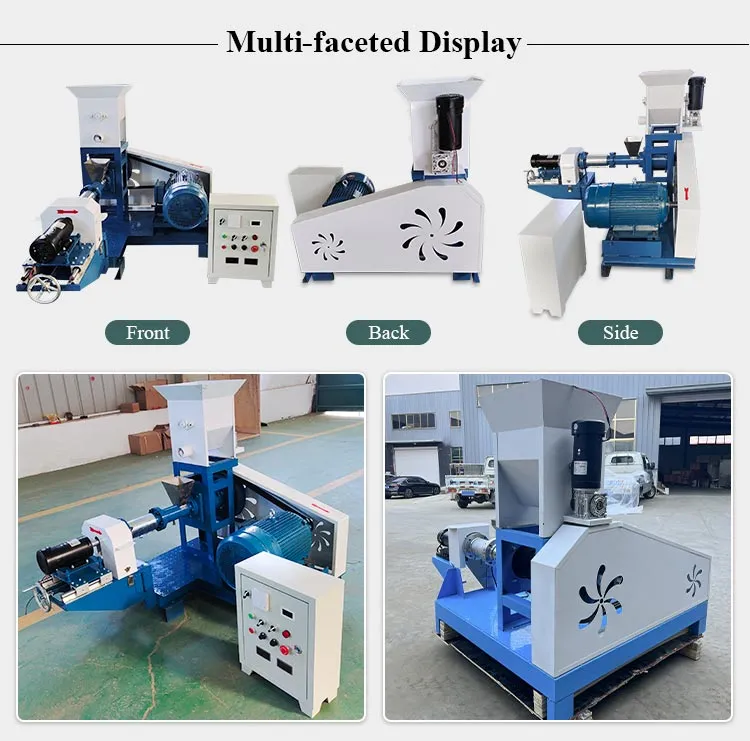

📸 Detailed Product Showcase

📦 Packaging & Our Services

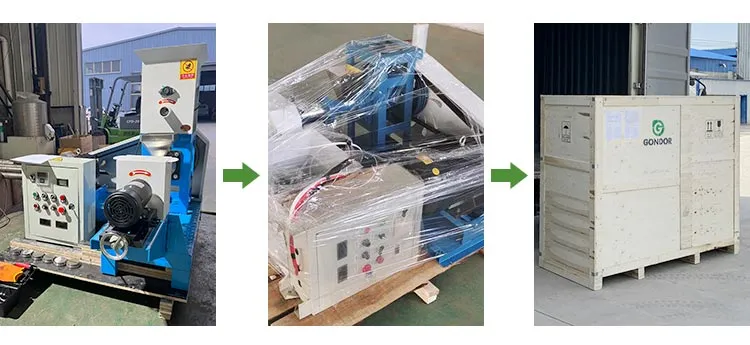

Packaging Details:

We use waterproof membranes to protect against dust and water. Outer packaging consists of standard export wooden cases to ensure safety during international transit.

Delivery: Stock items ship within 48 hours. Customized orders are negotiated based on specifications.

Service Support:

24-hour professional communication.
12 months warranty and lifetime technical support.
Smooth delivery via fast logistics partners.
Reception services for international visitors.

❓ Frequently Asked Questions

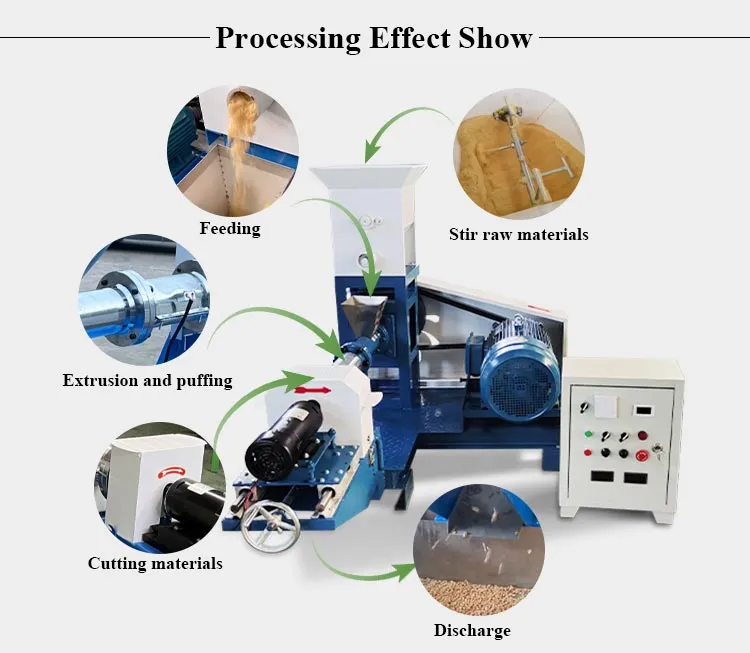

Q1: How does a feed extruder work? A: It works by pushing ingredients through an extrusion screw under high temperature and pressure. This process causes starch gelatinization and protein denaturation, significantly increasing digestibility.

Q2: What materials can be used with this machine? A: It can process corn, soybean meal, bean cake, animal scraps, fish meal, and various cereal grains to create customized feed for different animals.

Q3: How long does the aquatic feed float on water? A: The produced pellets can float on the water surface for more than 12 hours without sinking, which helps prevent water pollution.

Q4: Do you offer customization for different voltages? A: Yes, we provide customized solutions including specific voltage requirements (220V/380V), unique molds, and custom packing options.

Q5: Is the screw self-cleaning? A: Yes, the specialized screw design features a powerful self-cleaning function, reducing maintenance time and improving efficiency.

Q6: What is the typical service life of the components? A: The main components are made from refined alloy materials and undergo heat treatment, ensuring high wear resistance and a very long service life.
