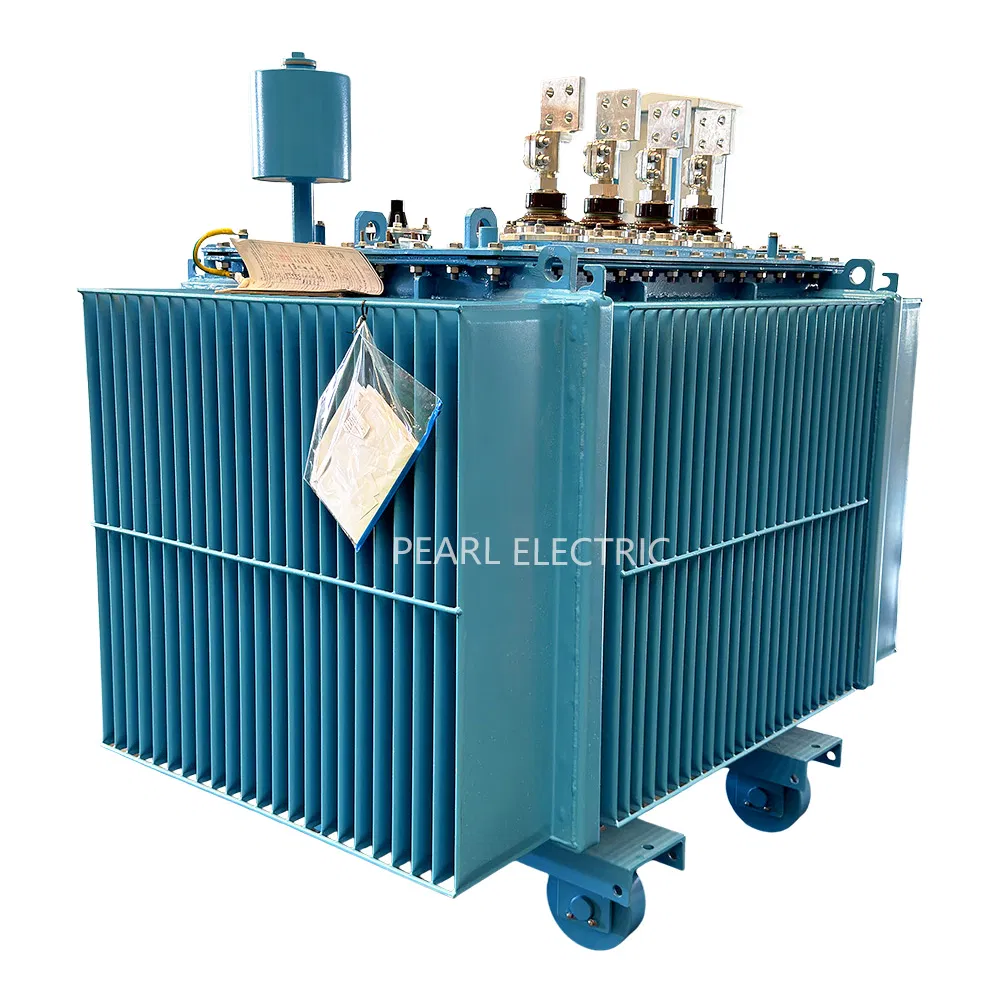

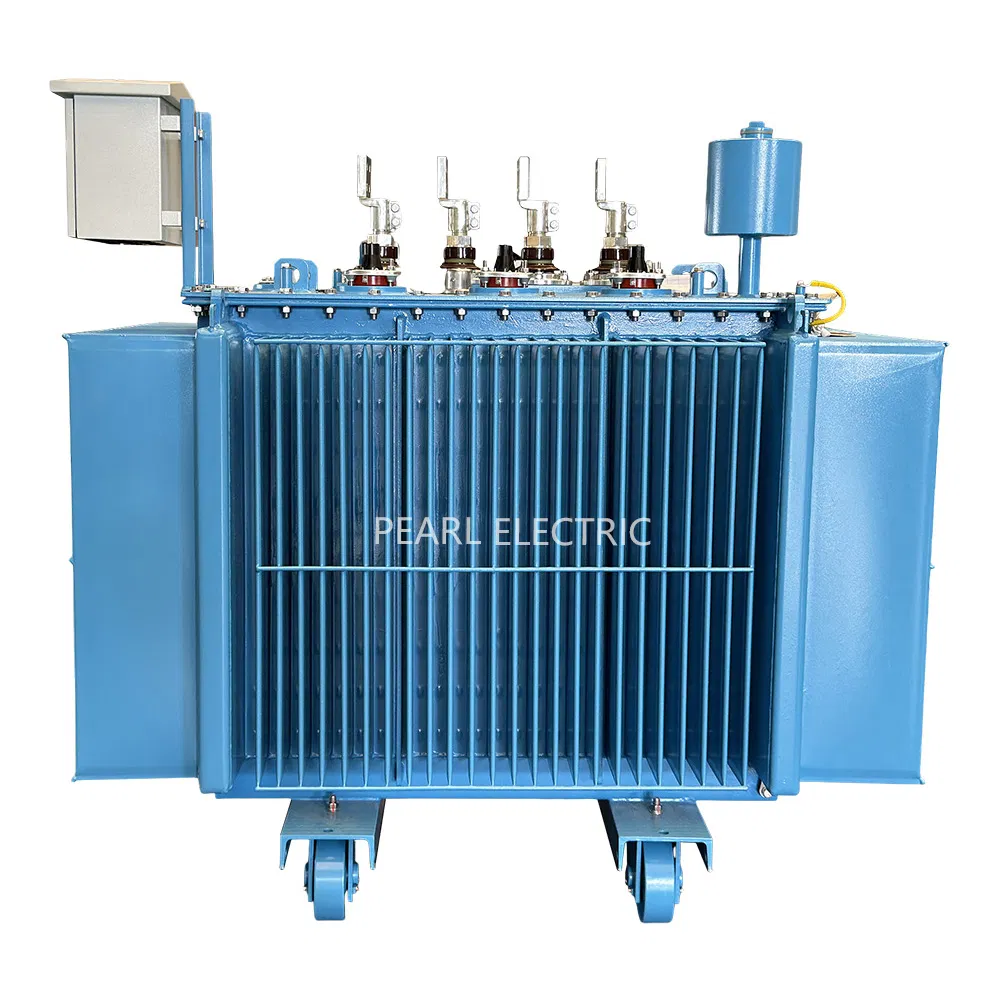

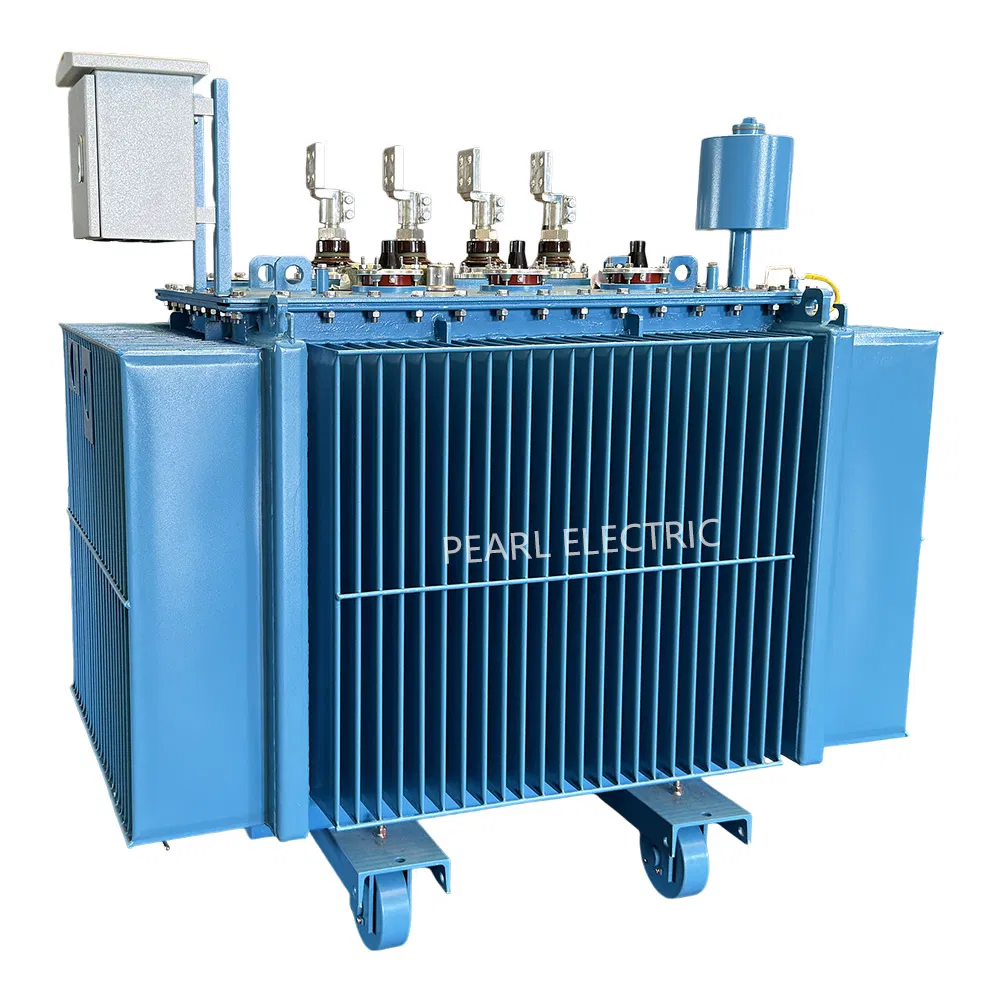

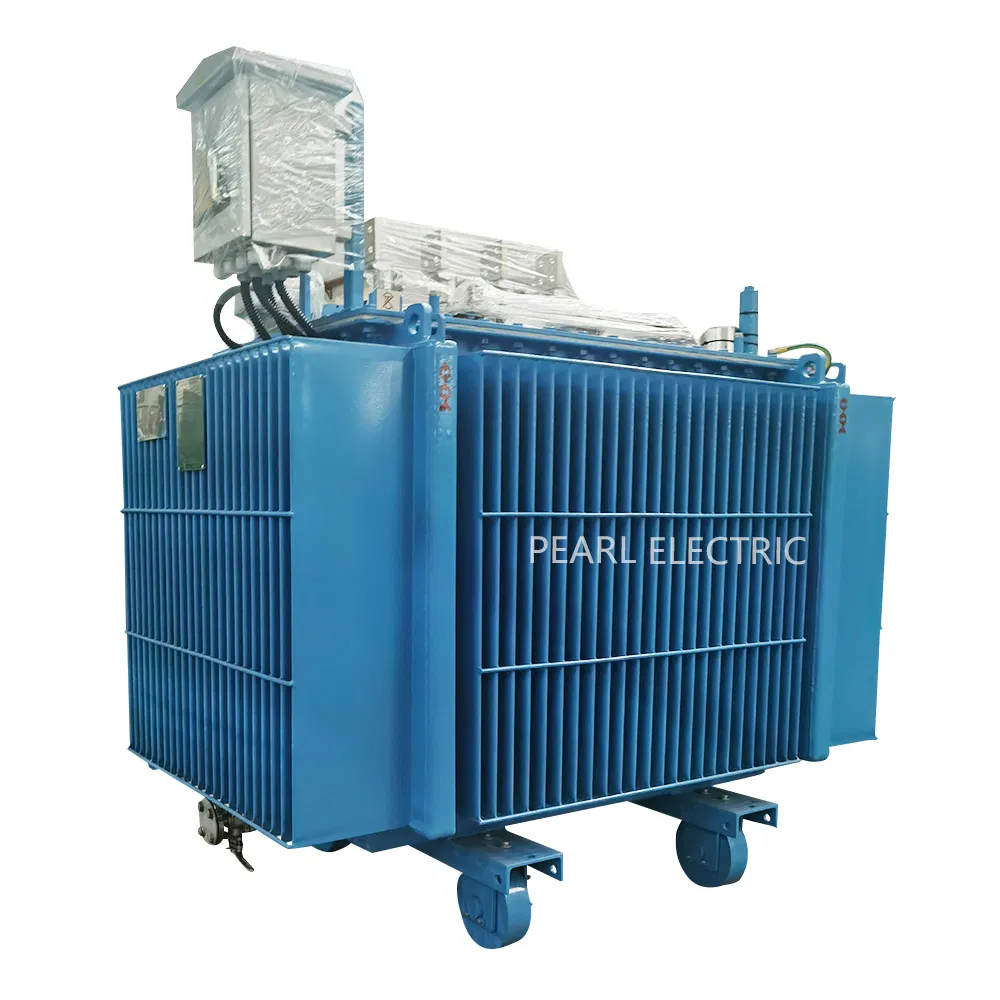

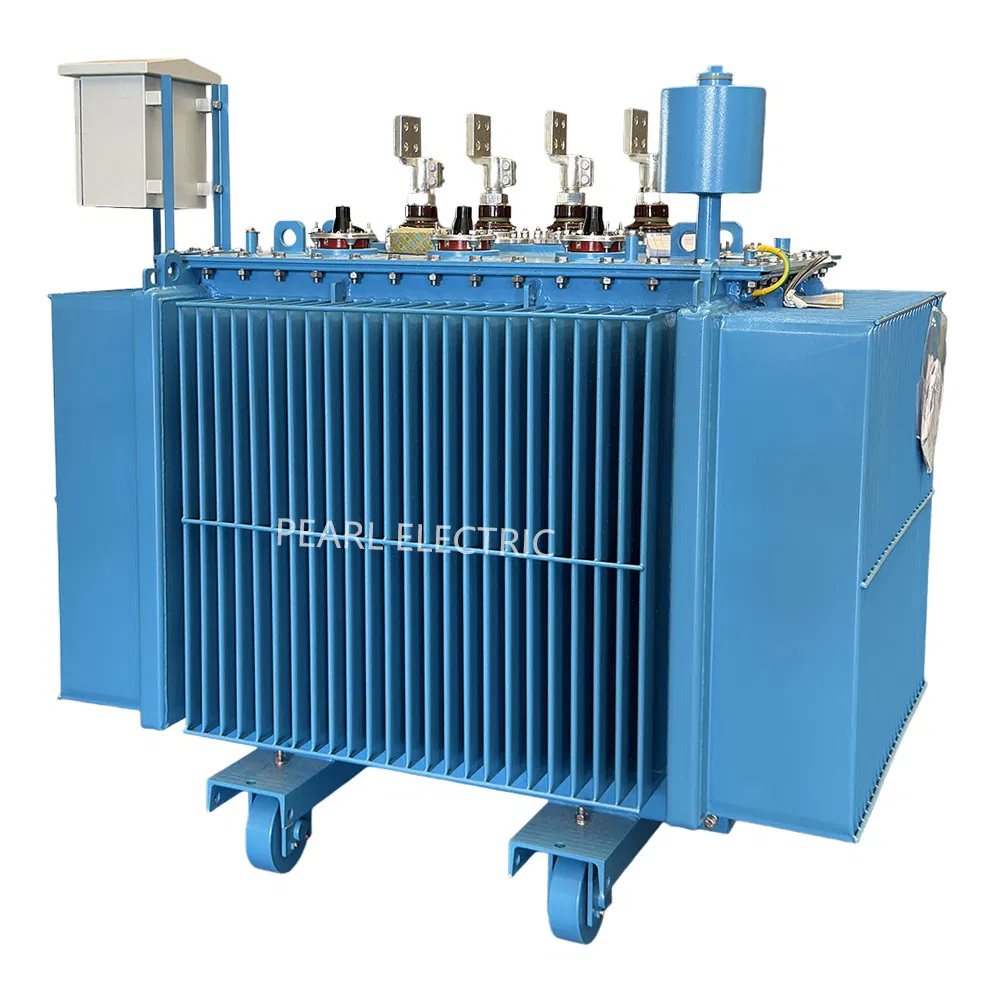

High Quality Oil Immersed Voltage Distribution Transformer

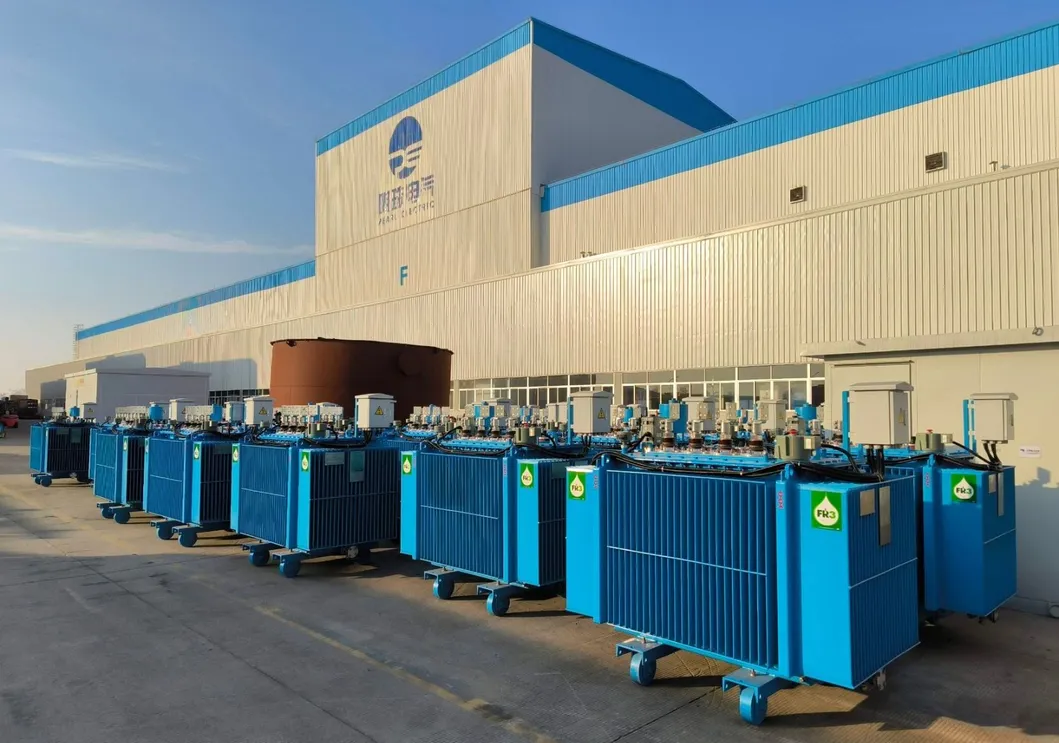

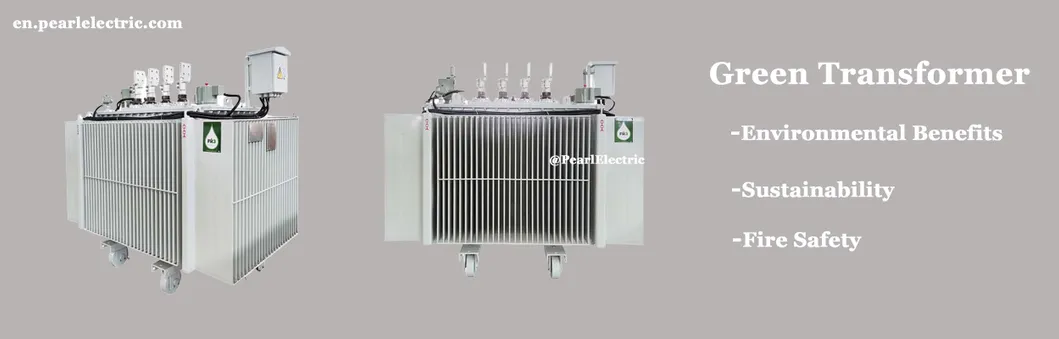

The Vegetable Oil Transformer, also known as a natural ester-filled transformer, is an environmentally friendly power transformer that uses vegetable oil as an insulating and cooling medium instead of traditional mineral oil. This type of transformer is designed to reduce the environmental impact of transformer operation, improve safety, and enhance sustainability.
These transformers are ideally suited for Wind Farms, Solar Power Plants, Hydropower Stations, Data Centers, and Urban Areas. Using oil-immersed technology ensures high efficiency and reliability in power distribution and transmission networks.
According to different insulation requirements, we provide mineral oil distribution transformers without PCB, environmentally friendly vegetable oil immersed power transformers, and specialized oil power transformers. Iron core options include silicon steel sheets or amorphous alloy cores, the latter offering ultra-high efficiency with losses significantly lower than standard units.
| Parameter Item | Specifications |
|---|---|
| Reference Standards | IEC 60076-11 |
| Rated Capacity | 3000kVA |
| Frequency | 50 / 60Hz |
| Primary Voltage (HV) | 13.8KV (Customizable) |
| Secondary Voltage (LV) | 0.4KV (Customizable) |
| Impedance Voltage | 4% - 6% |
| Vector Group | Dyn11 |
| Tapping Range | ±2×2.5% |
| Core Material | Silicon Steel / Amorphous Alloy |
| Winding Material | Copper / Aluminum |
| Insulation Class | H-class / A-class |
| Cooling Method | AN / AF / KNAN |
