Basic Information
Machine Type
Bag Forming Machine
Characteristic
Automatic Glue
📝
Product Description

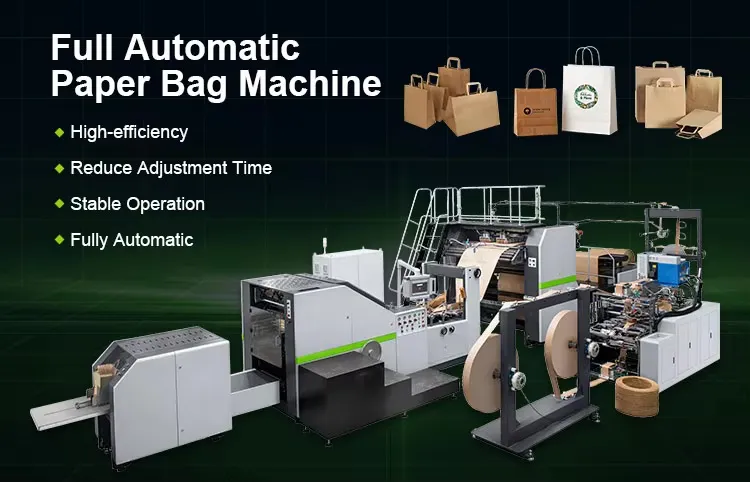

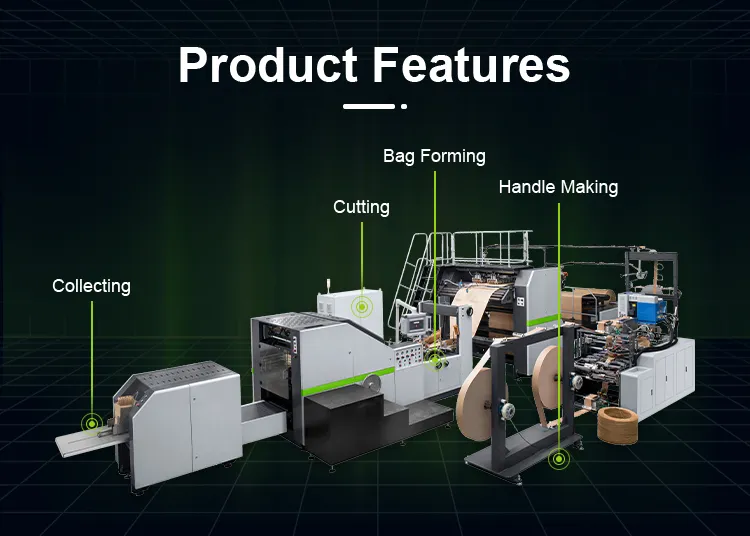

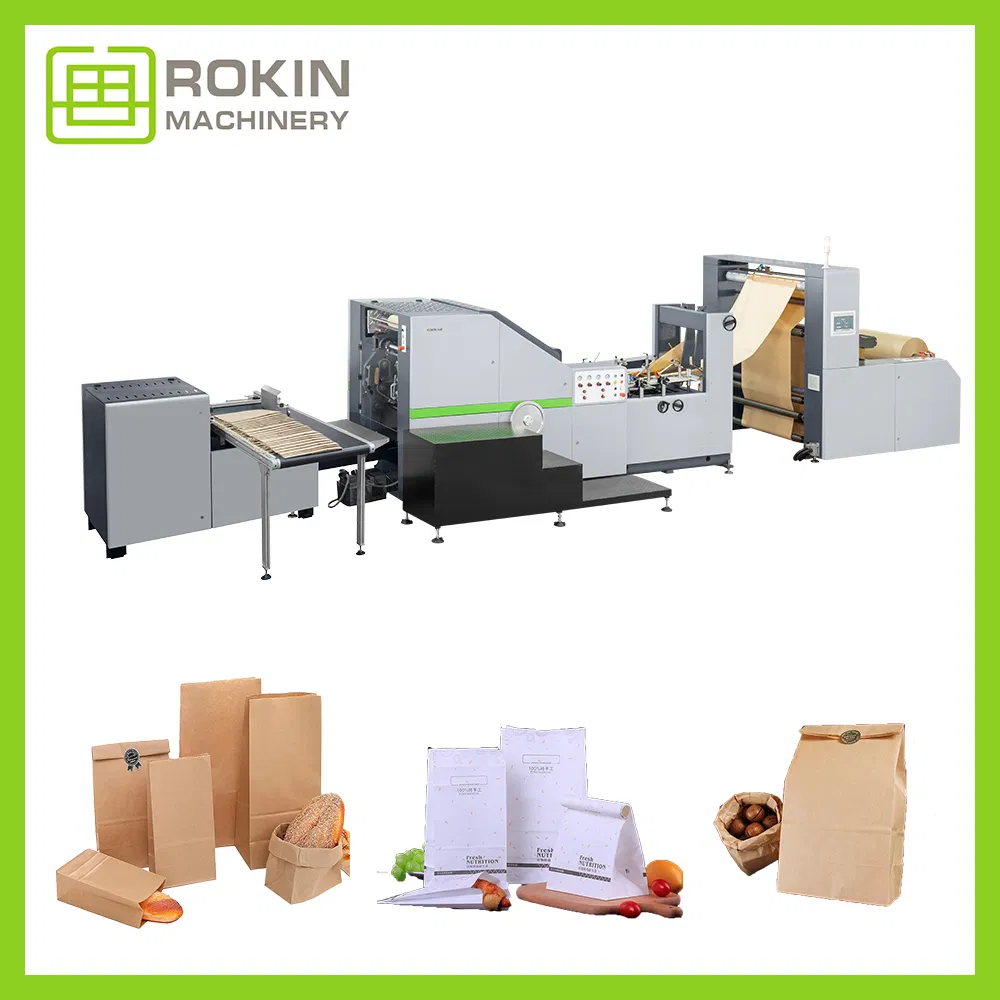

Paper bag machine series is applied to produce many types of paper bags with round handles, such as food paper bags, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient, stable and effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function improve packing efficiency.
📊
Product Parameters
| Model |
RKHF-330T/330F |
RKHF-450T/450F |
RKHF-450BT/450BF |
RKHF-550T/550F |
| Cutting length |
260-530mm / 260-430mm |
260-530mm / 260-430mm |
360-800mm / 360-700mm |
360-800mm / 360-700mm |
| Bag width |
130-330mm / 220-330mm |
150-450mm / 250-450mm |
220-450mm / 250-450mm |
220-550mm / 250-550mm |
| Bottom width |
70-180mm |
70-180mm |
100-250mm |
100-250mm |
| Paper thickness |
60-160 g/m2 |
60-160 g/m2 |
80-160 g/m2 |
80-160 g/m2 |
| Max Speed |
60-150 pcs/min |
60-150 pcs/min |
30-120 pcs/min |
30-120 pcs/min |
| Power |
25KW |
25KW |
30KW |
30KW |
| Weight |
18000 KGS |
19500 KGS |
19500 KGS |
23000 KGS |
⭐

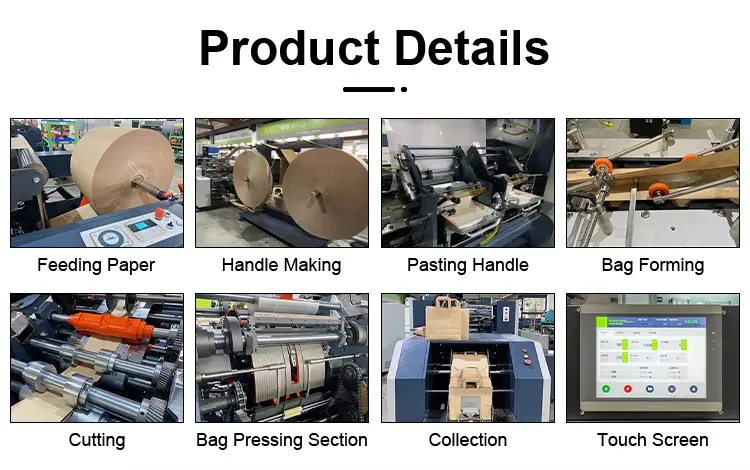

Key Features
- Human-machine touch screen interface for real-time work condition monitoring.
- Accurate servo motor drive for steady and efficient operation.
- Pneumatic or hydraulic lifting structure for material loading and unloading.
- Automatic constant tension control system from beginning to end.
- Double photoelectric sensor for automatic correction and rectification stability.
- Glue roller air defense coating control to avoid unnecessary maintenance.
- Accurate color tracking system with automatic alarm prompts.
- Adjustable forming mould structure for versatile production.
🛠️

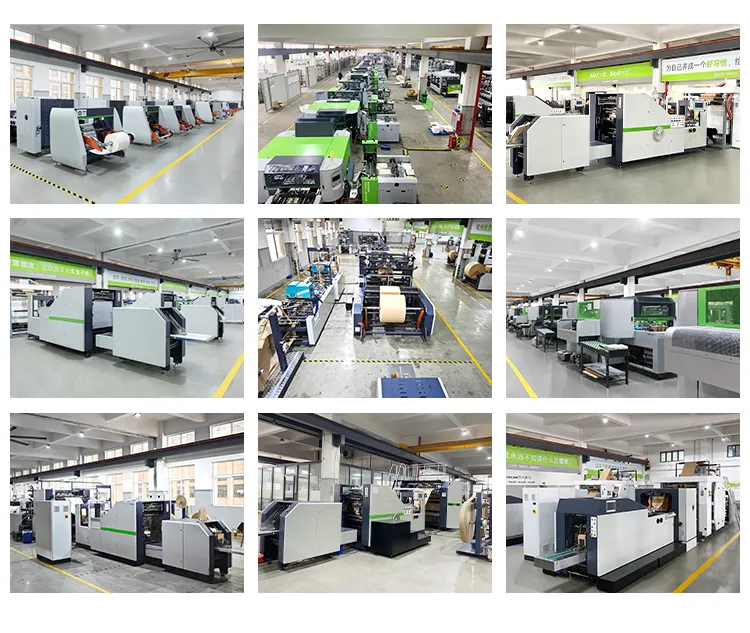

Manufacturing & Capabilities
❓
Frequently Asked Questions
Q: What types of paper bags can this machine produce?
A: This machine is suitable for food paper bags, shopping bags, garment bags, leisure food bags, bread bags, airsickness bags, and fruit bags.
Q: What is the maximum production speed?
A: Depending on the specific model, the speed ranges from 30 up to 150 pieces per minute.
Q: Does the machine handle different paper thicknesses?
A: Yes, it supports paper thickness from 60GSM up to 160GSM, depending on whether handles are being attached.
Q: How is the cutting precision maintained?
A: Precision is ensured through an integrated photoelectric detector and a high-performance PLC system that corrects cutting length automatically.
Q: Is the machine easy to operate for different bag sizes?
A: Yes, it features an adjustable forming mould and a human-machine touch screen interface, making size adjustments intuitive and efficient.
