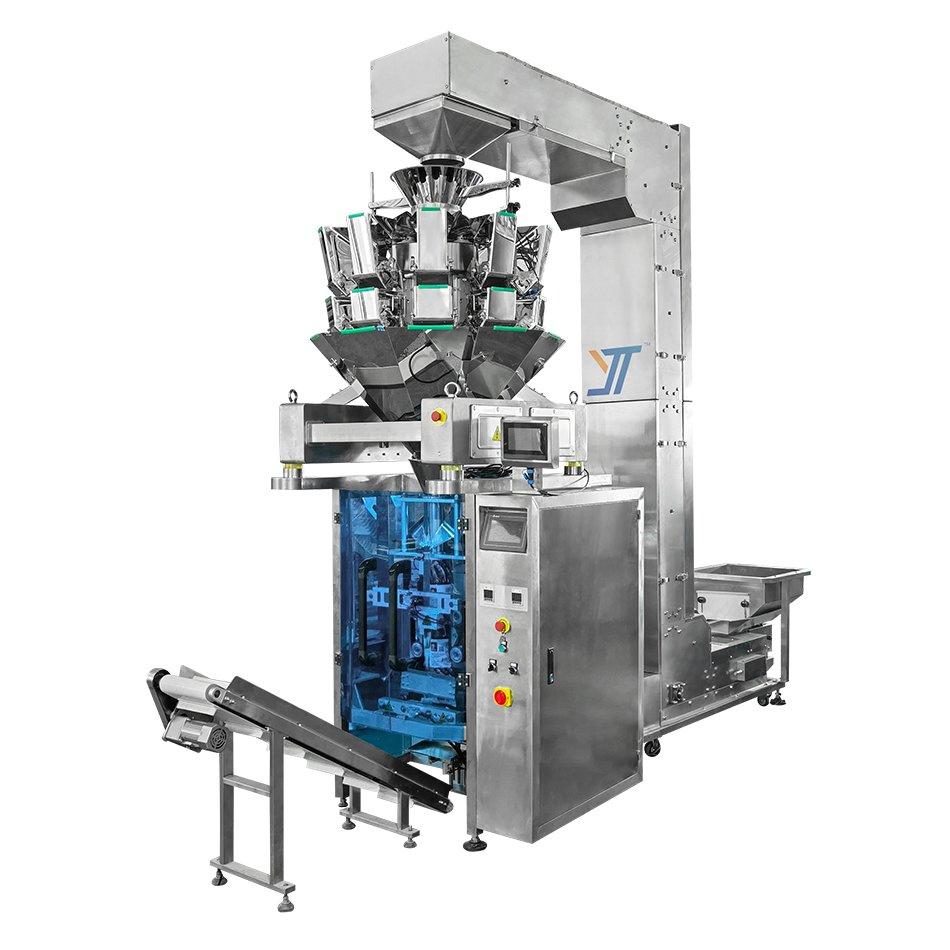

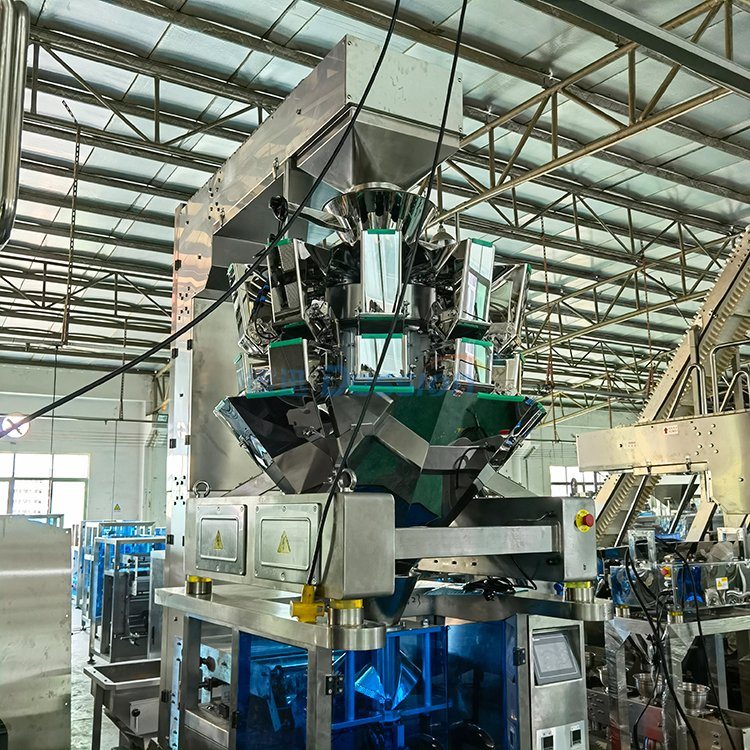

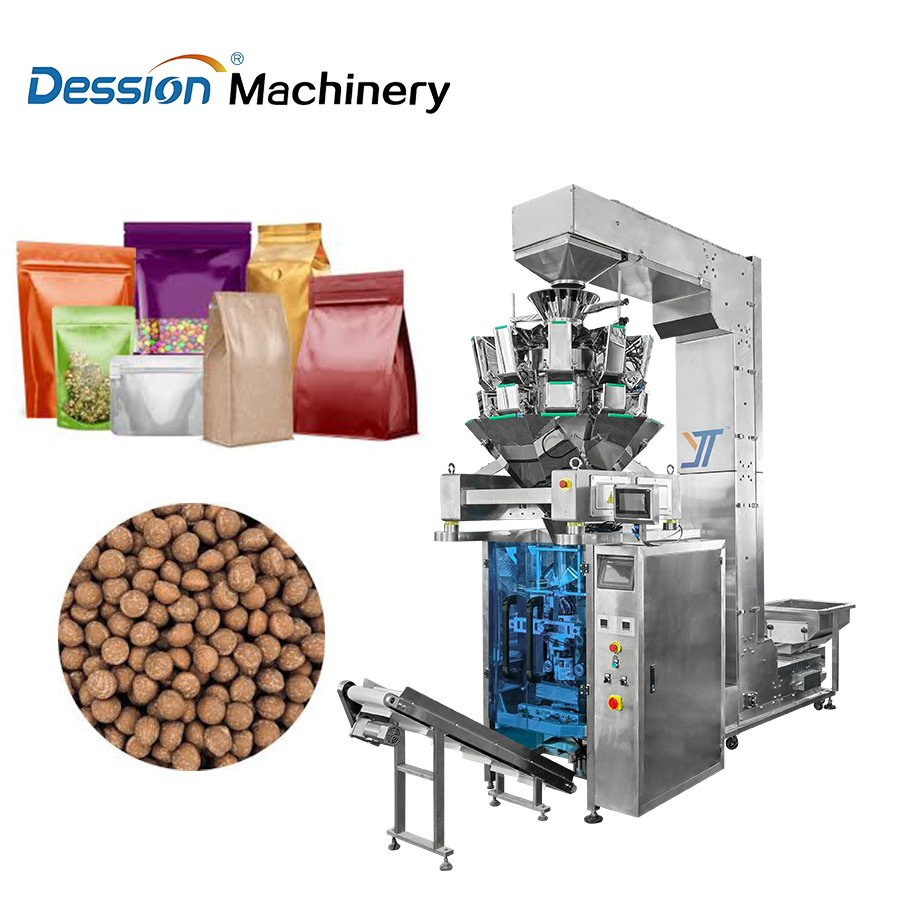

Automatic Pet Food Packing Machine – Multi-Function Dry Kibble/Treats/Granule Packaging for Dog/Cat/Fish Feed in Back Seal Bag

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info. & Overview
Model NO.
DS-420AZ
Automatic Grade
Automatic
Type
Filling and Sealing Machine
Material Type
Solid / Granule
Packaging Material
Film
Packaging
Bag / Stand-up Pouch
Driven Type
Electric
Weight (Kg)
1200
Production Capacity
5-60 Bags Per Min
Voltage
220V, Customizable
Machine Application
Automatic Packing Machine Application
Vertical form fill seal (VFFS) packaging machines are fast, economical solutions that conserve valuable floor space. The VFFS machine is ideal for:
  • Food Industry: Peanuts, popcorn, grains, coffee beans, potato chips, frozen food, candy, sugar, tea, and other granule products.
  • Pet Food Industry: Dog food, bird food, cat food, fish feed, and poultry food.
  • Hardware Industry: Plastic pipe elbows, nails, bolts, nuts, buckles, and wire connectors.
Granule Packaging Solutions
Technical Parameters
Model DS-420AZ DS-520AZ DS-620AZ DS-720AZ
Roll Film WidthMax. 420mmMax. 520mmMax. 620mmMax. 720mm
Filling Range150~1500ml150~2000ml150~4000ml150~4000ml
Bag Length80~300mm80~350mm100~350mm100~450mm
Bag Width60~200mm80~250mm200~350mm100~350mm
Packaging Speed5~60bags/min10~50bags/min5~50bags/min10~40bags/min
Power2.2KW3KW3KW3.6KW
Machine Weight650KG750KG850KG950KG
Key Machine Features
⚙️
Advanced Control: PLC control system with a user-friendly English/Chinese touch screen and servo motor for precise operation.
🔄
All-in-One Operation: Fully automatic bag forming, dosing, filling, sealing, coding, and counting completed in one cycle.
🛡️
GMP Standard: Constructed with high-quality stainless steel, ensuring safety for food packaging and durability.
📏
Precision Sealing: Independent temperature control system with accuracy up to ±1°C, suitable for various film materials.
📦
Bag Diversification: Supports pillow bags, angled bags, hanging-hole bags, and vertical bags to meet customer needs.
🚨
Safety Alarms: Features multiple automatic alarming protective functions to minimize wear and tear.
Machine Details & Options

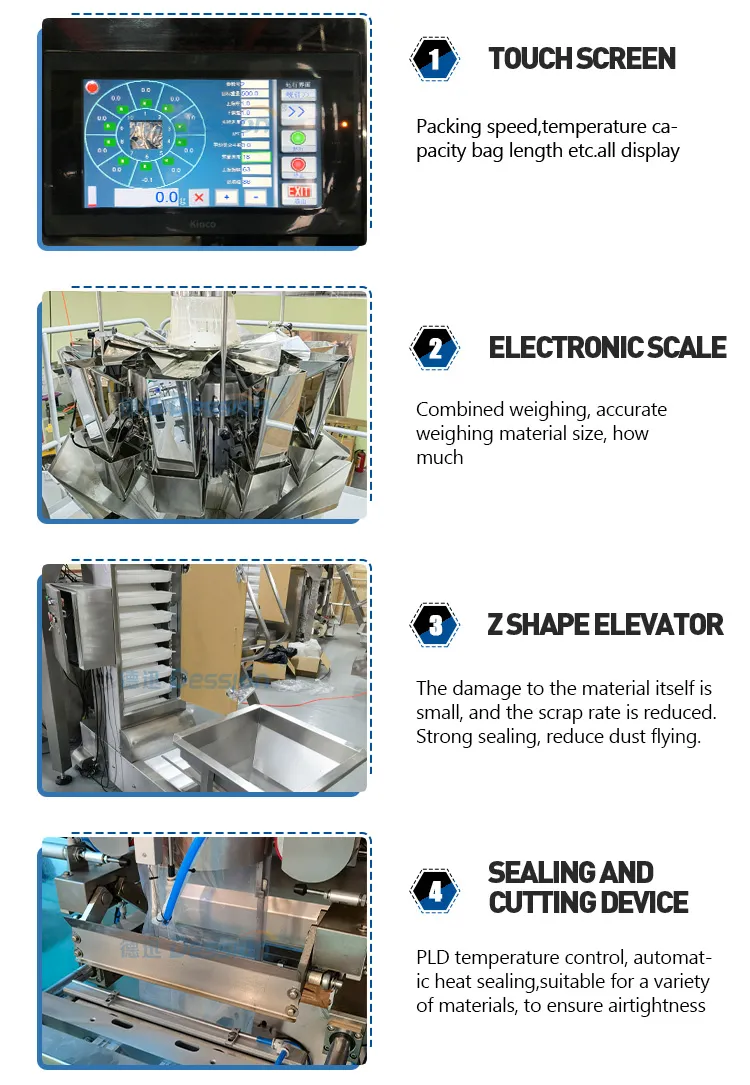

Machine Detail Components

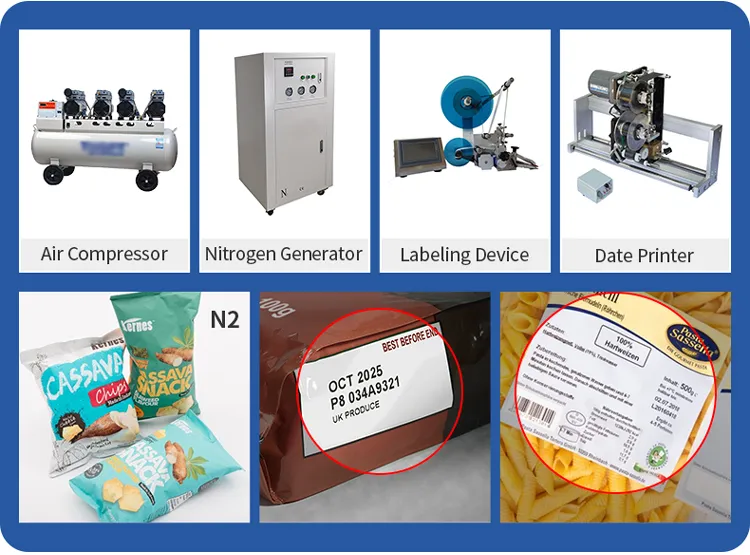

Optional Equipment: To optimize production, the machine can be integrated with:

  • Air Compressor (required for operation)
  • Nitrogen Production Equipment (for product freshness)
  • Labeling Machines & Date Coding Units
  • Check Weighers & Metal Detectors
Optional Components
Product Display

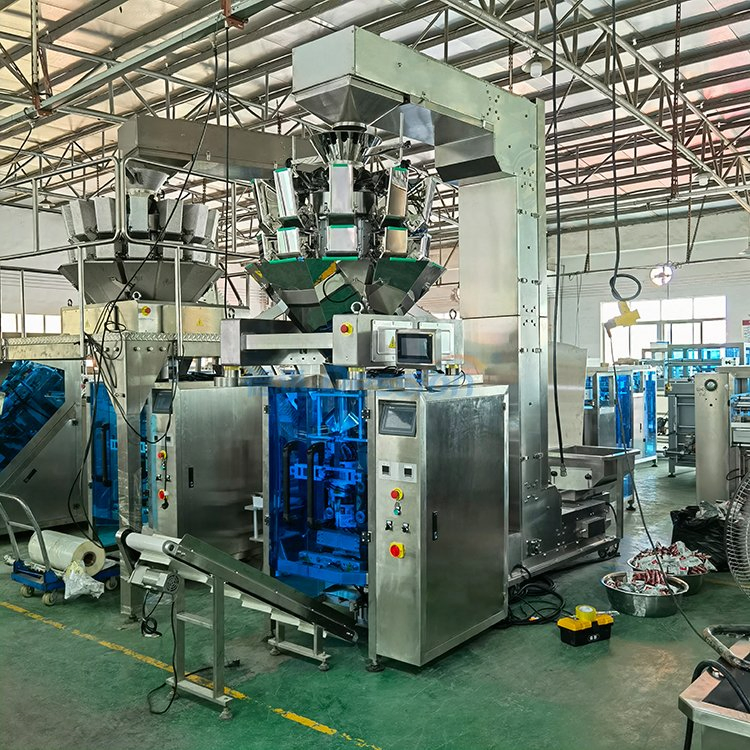

Packaging Line Overview
Packaging Detail 1 Packaging Detail 2 Packaging Detail 3 Packaging Detail 4 Packaging Detail 5 Packaging Detail 6
Frequently Asked Questions
Q1: What materials can the VFFS machine handle? A: It is suitable for a wide range of solid and granule products, including snacks, pet food, hardware parts, frozen vegetables, and medicinal herbs.
Q2: Is the operation difficult for new users? A: No, the machine features a PLC control system with an English touch screen, making it very easy to operate and adjust parameters without stopping the machine.
Q3: What types of bags can this machine create? A: The machine is versatile and can produce pillow bags, angled bags, hanging-hole bags, and vertical bags depending on your requirements.
Q4: Does the machine require an air compressor? A: Yes, in addition to the electrical power supply, the machine requires a connection to an air source for normal operation.
Q5: Is the machine made of food-grade materials? A: Yes, the machine is built with high-quality stainless steel that meets GMP standards, ensuring it is safe for food and pharmaceutical packaging.
Q6: How accurate is the temperature control for sealing? A: The machine uses an independent temperature control system with precision up to ±1°C, ensuring a perfect seal for various film types.
