Automatic Industrial Dry Dog Food Production Equipment Extruder Floating Fish Feed Kibble Cat Food Make Machine for Floating Fish Feed Product

Customization: Available
After-sales Service: Online Support, Video Technical Support
Warranty: 1 Year

Product Description

📋

Basic Information

Model NO.DFL-10
Power SourceElectric
ProcessThermal Processing
Automatic GradeAutomatic
ApplicationDog, Fish, Cat, Bird
Feed TypePet Food Production Line
MaterialStainless Steel SS304/201/316
Capacity100-2000kg/H
Heating MethodElectric Heating
Extruder TypeTwin Screw Extruder Machine
Pet Food Production Equipment
⚙️

Product Description

Introduction

The pet food production line is an automated equipment designed for pet food production, covering the entire production process from raw material crushing, mixing, puffing extrusion, drying, and seasoning. The production line ensures the taste and nutritional value of pet food through precise temperature control, pressure and humidity control.

Key Features

  • Dust-free pulverizer with efficient dust removal system.
  • Closed pipeline air conveyor to avoid material leakage.
  • Extruder modulator pre-cooks material for uniform mixing.
  • Twin-screw extruder with fast processing speed and high efficiency.
  • Fully automatic temperature control system.
  • High-speed vibrating screen to prevent material adhesion.
  • Multi-layer drying furnace for space-saving continuous production.
  • Layered drying technology for energy efficiency.
  • Drum mixer with universal wheels for easy movement.
  • Multi-layer cooling belt with excellent cooling effect.
📊

Technical Parameters

Machine Name Power Capacity Dimension
Dust-free pulverizer75kw2T/H5000*6000*4000mm
Powder mixer11KW600-800kg/batch2700*1200*1900mm
Puffing machine110KW2T/H6568*1250*2370mm
Vibrating screen1.5KW-2000*1200*800mm
Multi-layer dryer30KW300KG/H11000*1600*6000mm
Drum mixer3.8KW0-6L/minΦ650*3450mm
Cooling belt4kw-6000*900*1600mm
🔄

Processing Flow

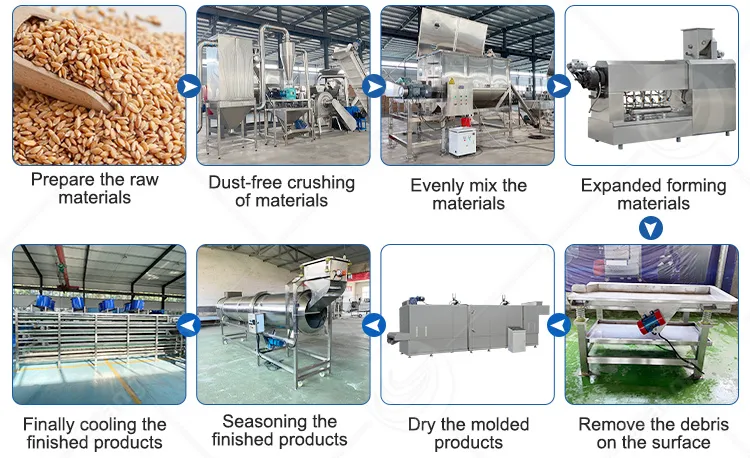

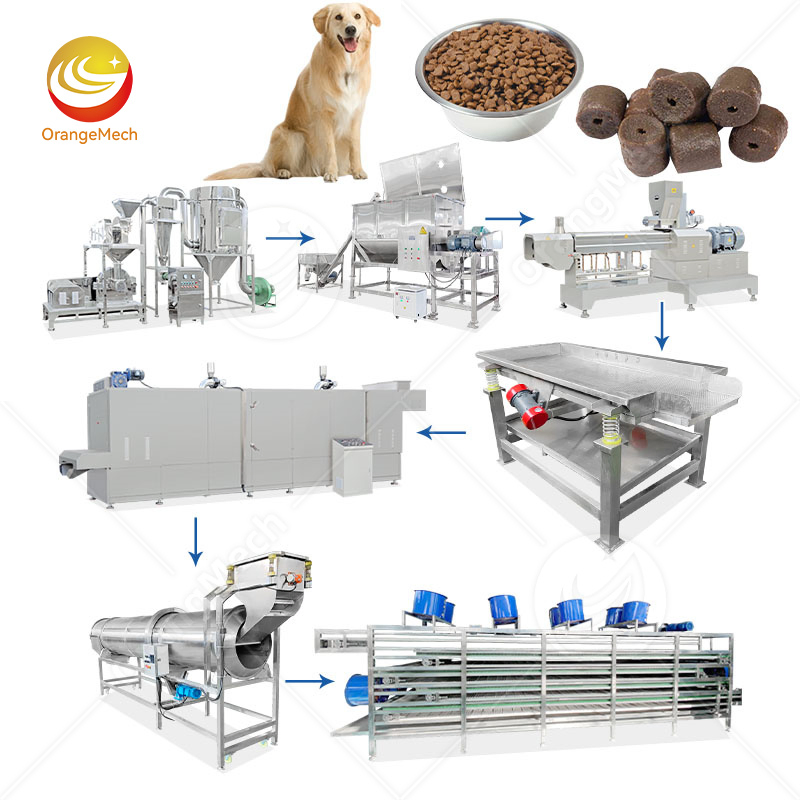

Processing Flow Diagram
🔍

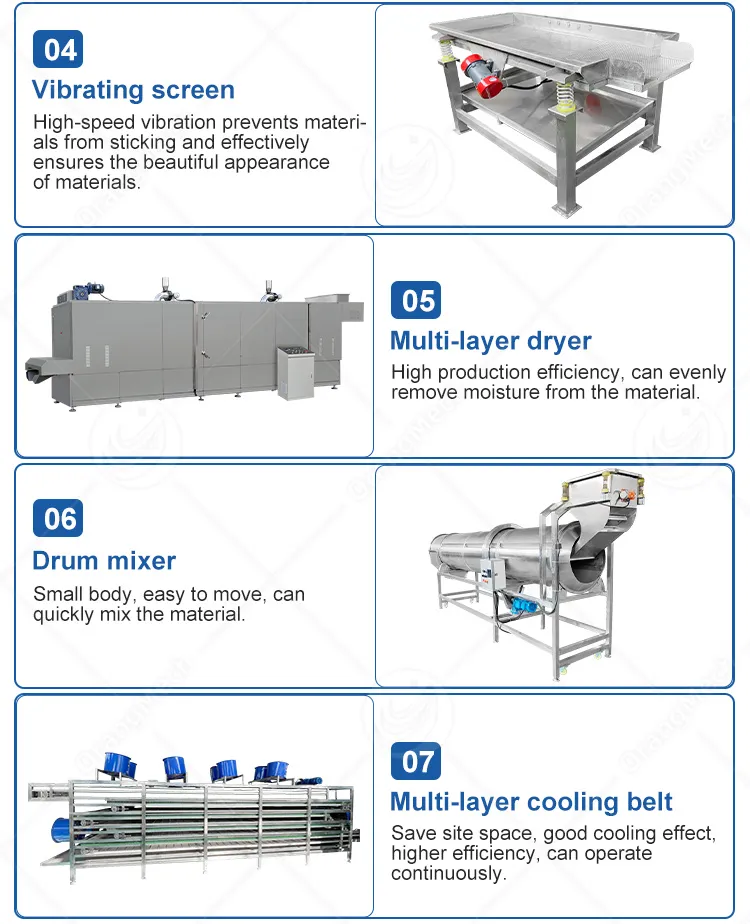

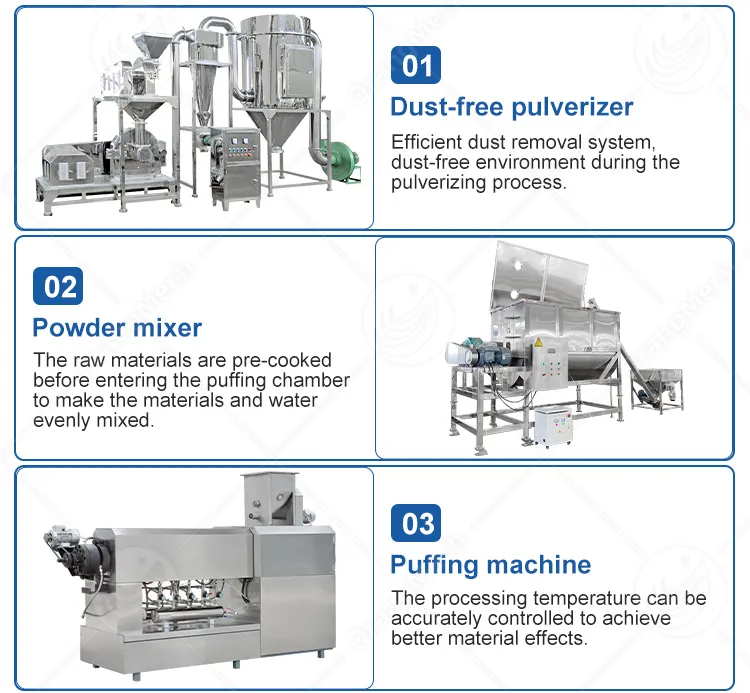

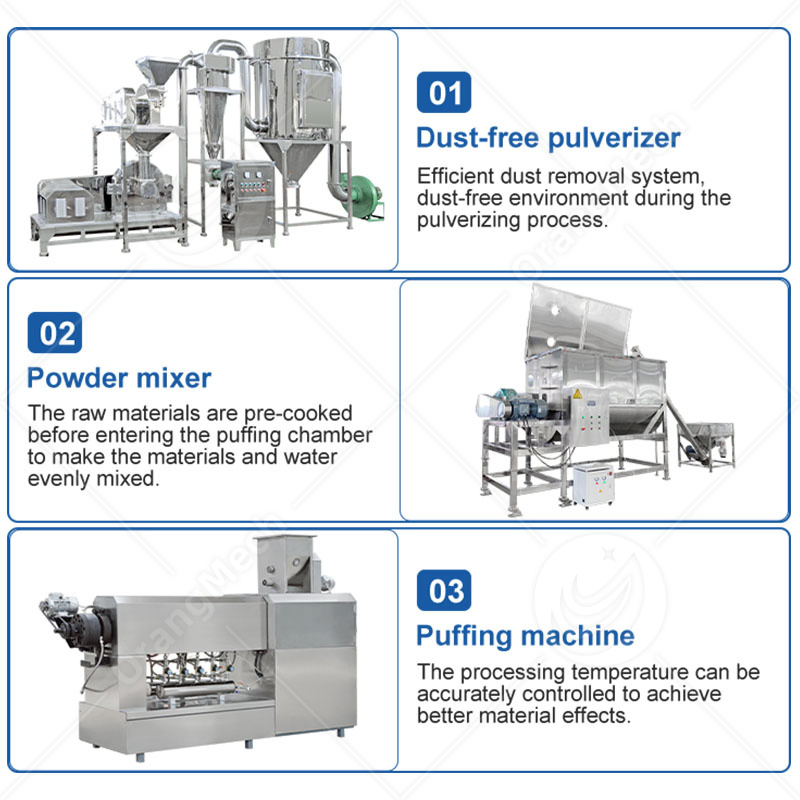

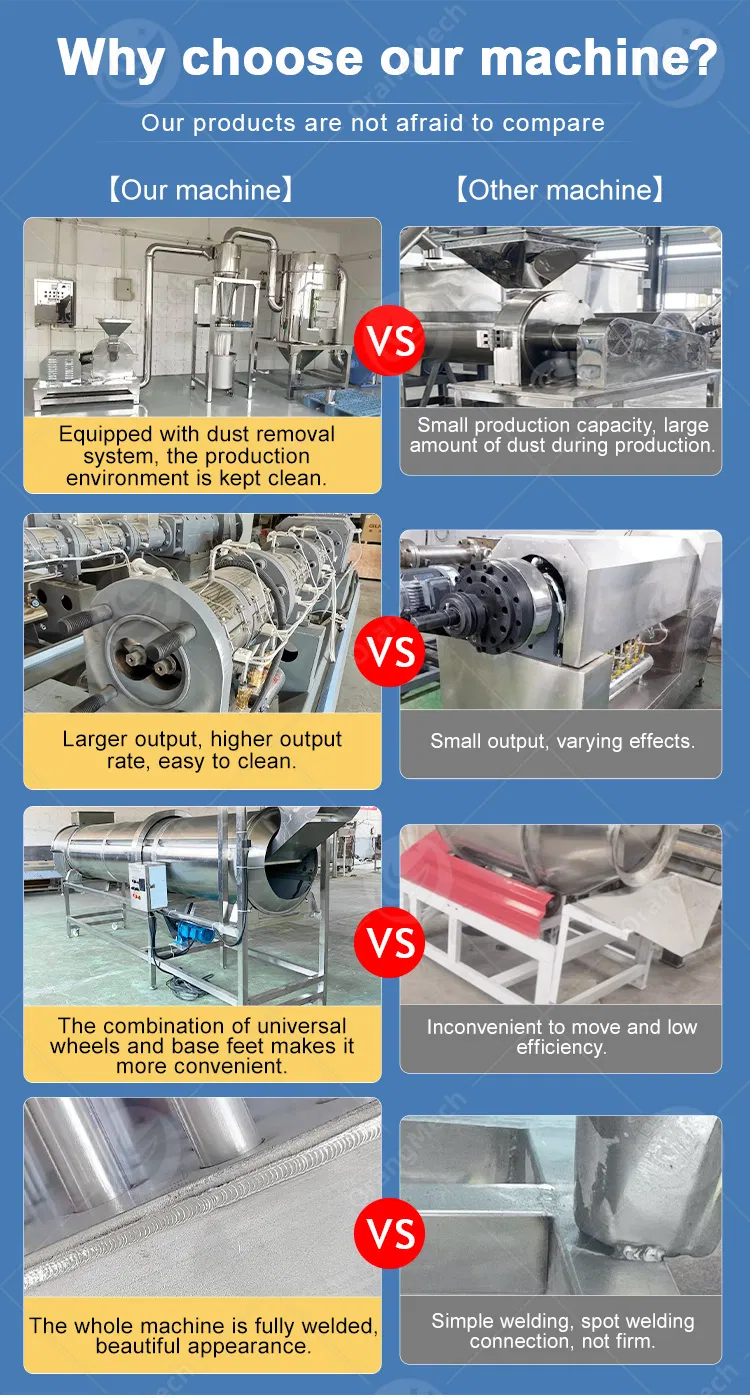

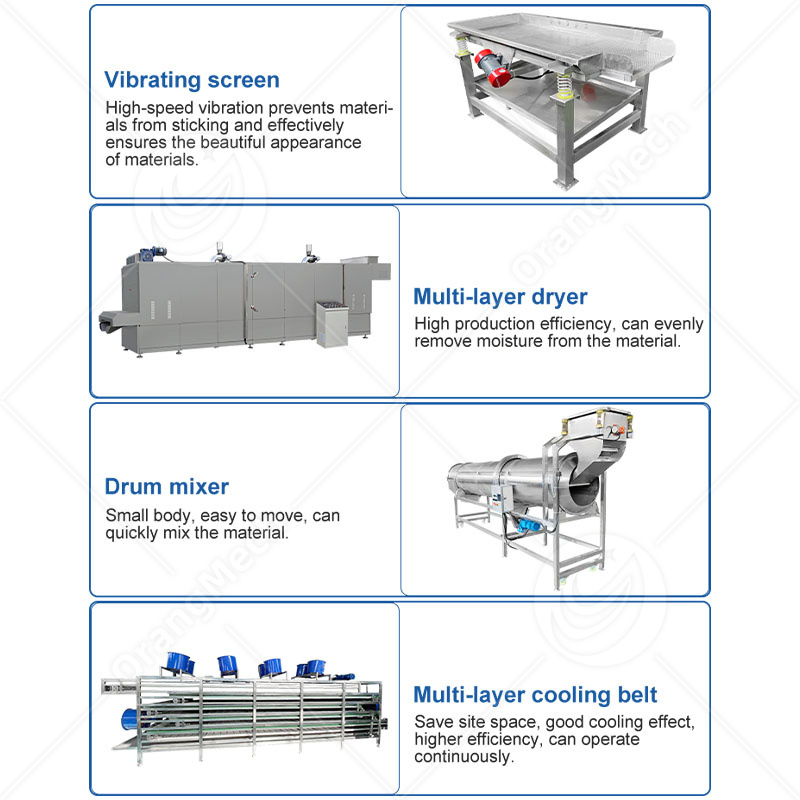

Machine Details

🔗

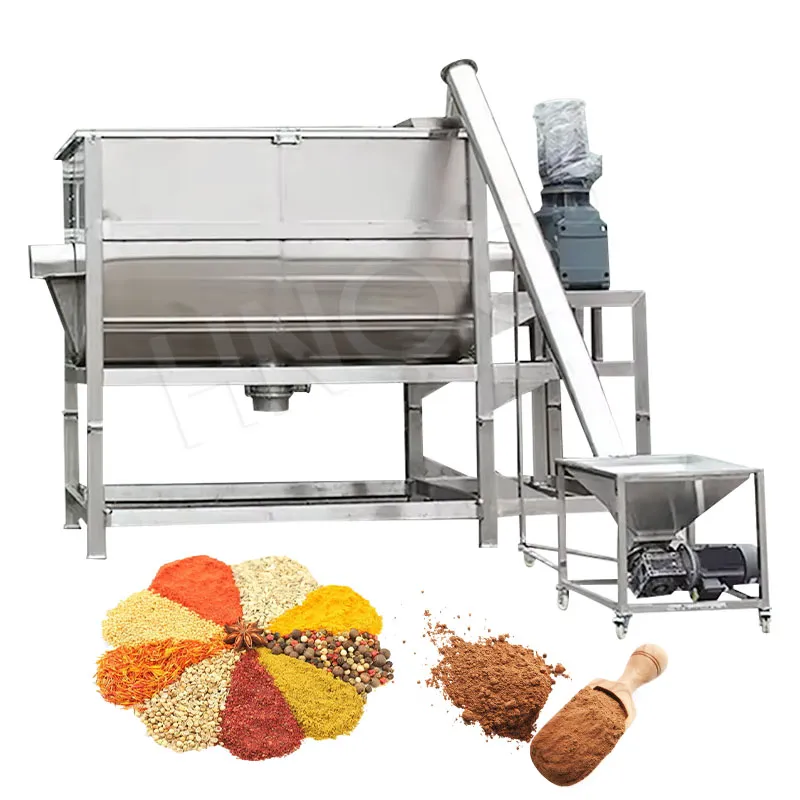

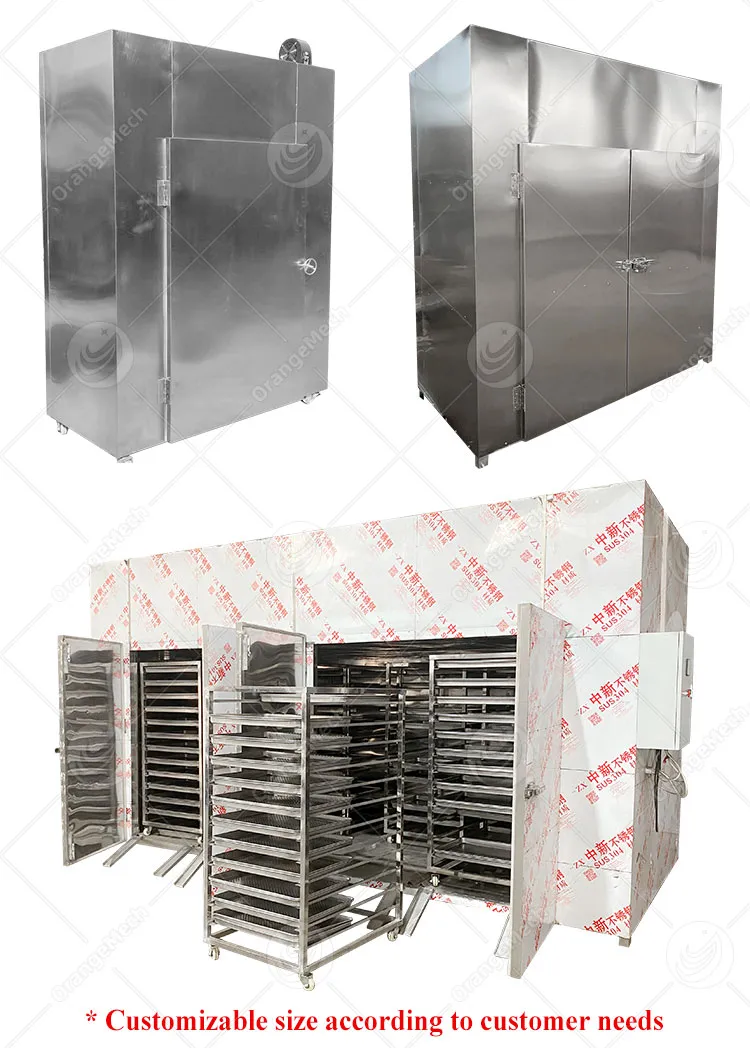

Related Machines

📸

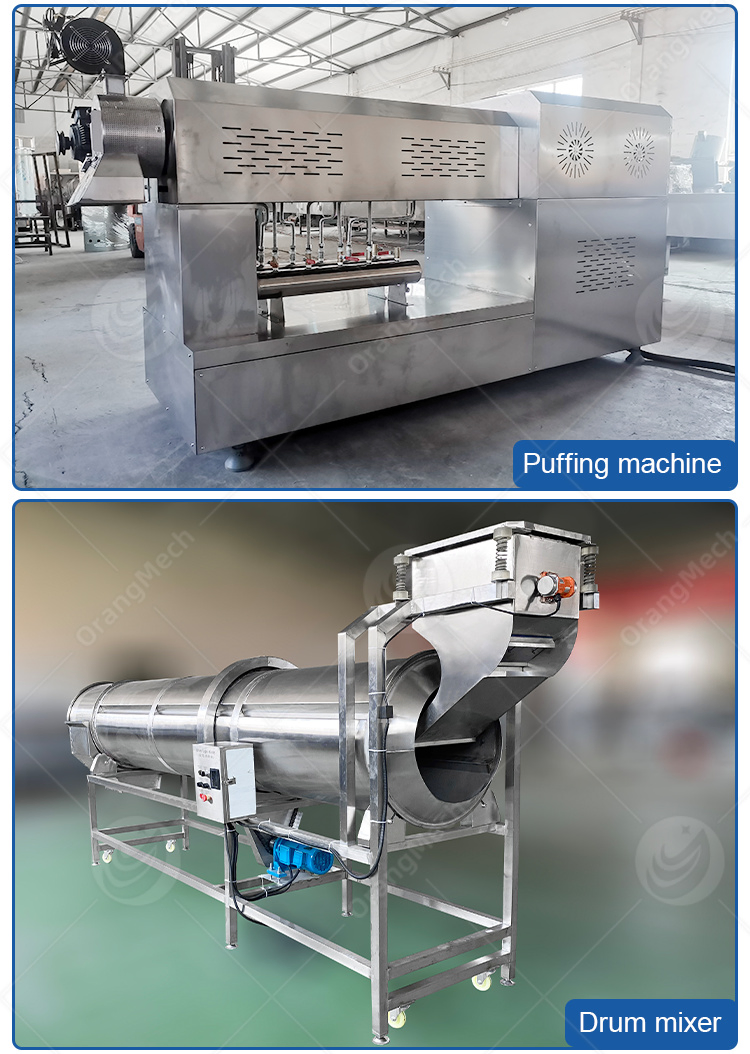

Product Photographs

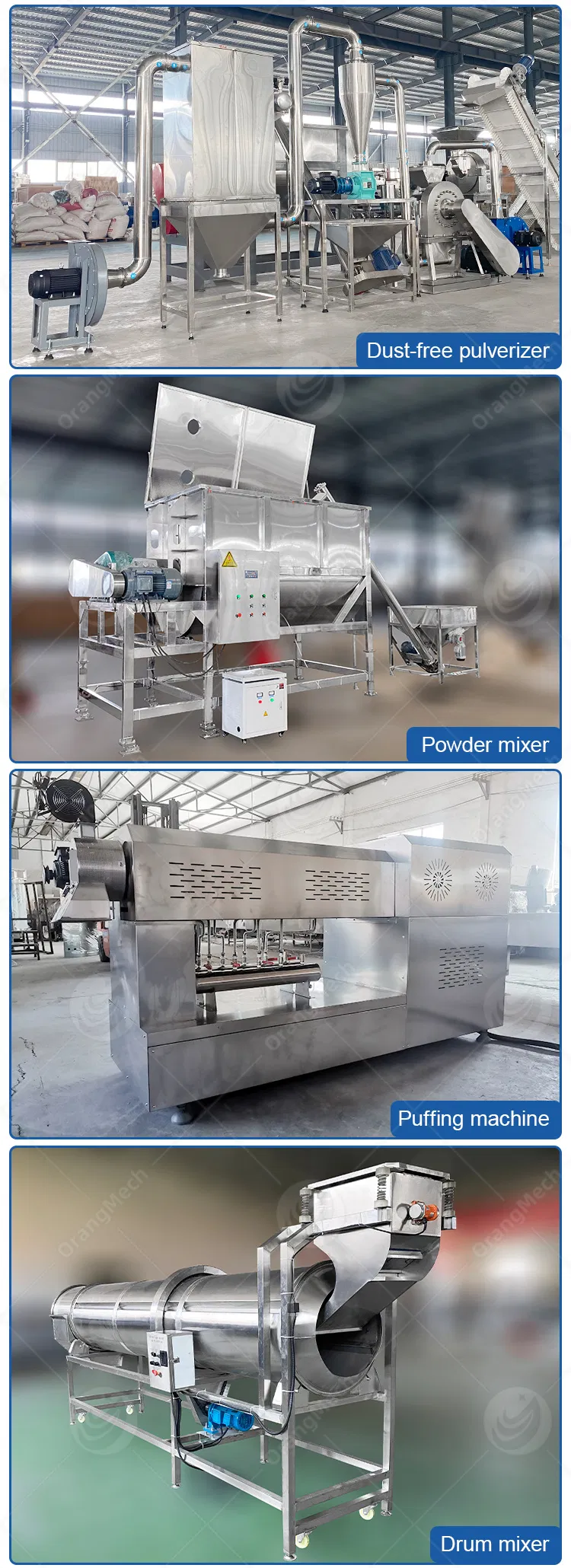

Product Show
🏭

Factory Information

20+Years Experience
ISOCertified Quality
CEGlobal Standards
OEM/ODMCustom Services

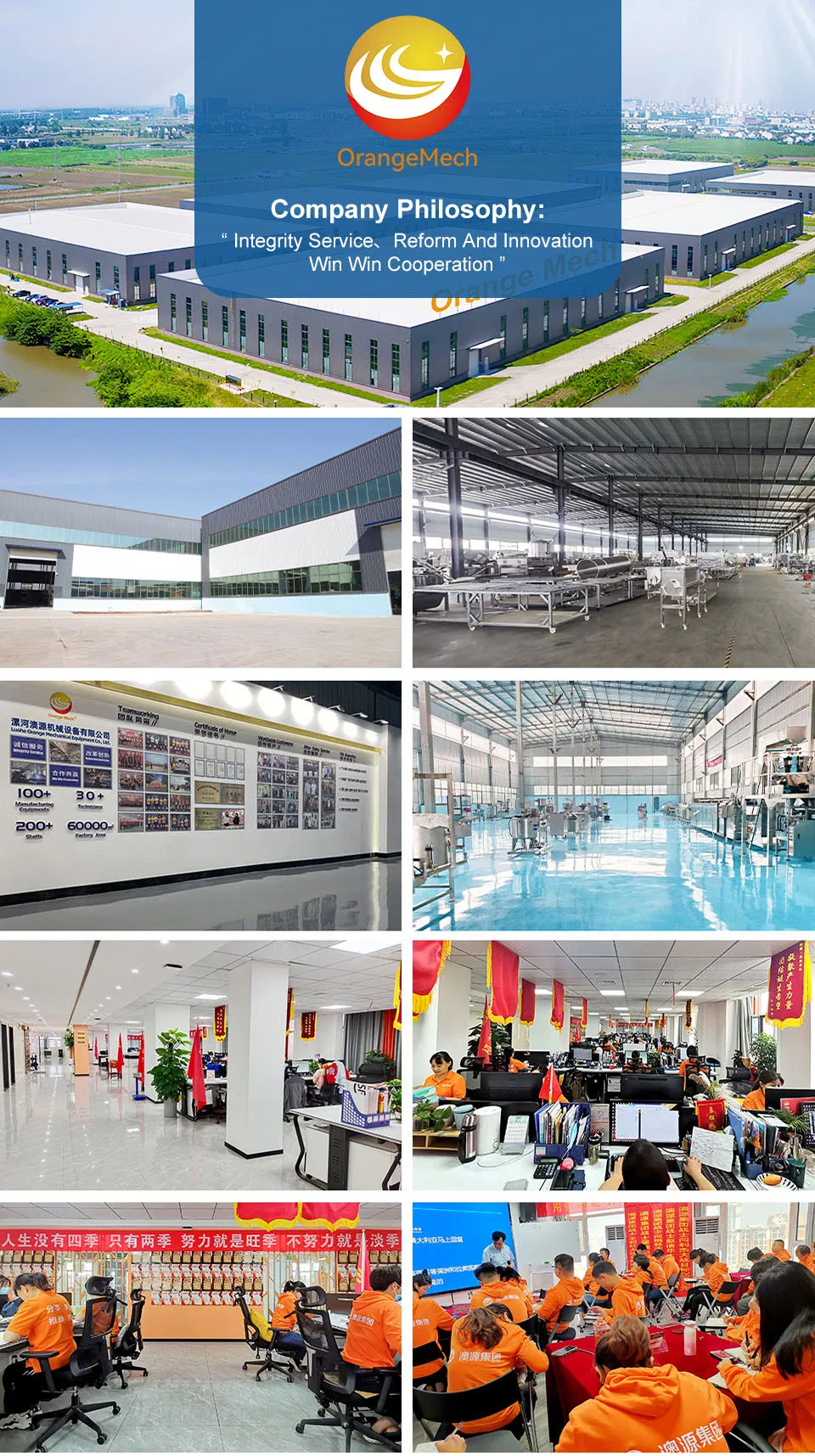

Factory View
Certifications

Frequently Asked Questions

What products can the production line produce?
It can produce various pet foods such as dog food, cat food, floating fish feed, pet snacks, and other specialized animal nutrition products.
What equipment does the entire production line include?
It mainly consists of a pulverizer, powder mixer, puffing extruder, vibrating screen, multi-layer dryer, drum mixer for seasoning, and cooling conveyor.
Is the production process efficient?
Yes, the twin-screw extruder features fast processing speed, automated temperature control, and high output capacity to ensure maximum efficiency.
Does the equipment meet food safety standards?
All material contact parts are made of 304/316 food-grade stainless steel, ensuring safety, hygiene, and easy maintenance.
Can the production capacity be customized?
Yes, our standard models offer capacities from 100kg/h to 2000kg/h, and higher capacities can be customized based on requirements.

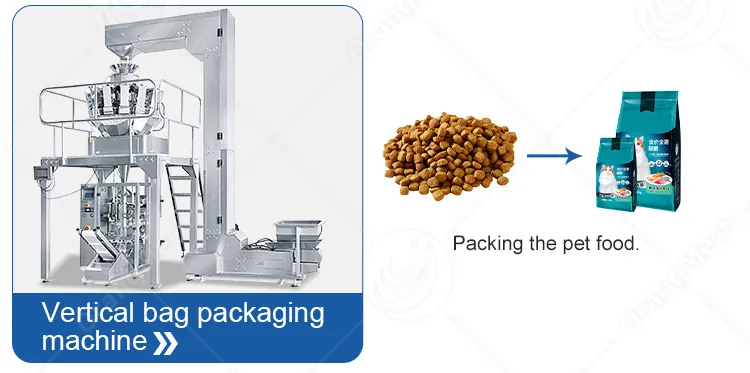

Can it be connected to packaging machines?
The discharge end of the cooling belt can be directly connected to various automated packaging systems for a seamless production flow.
